Suzuki Vitara (LY) 2016-2017 · Service Manual Repair Instructions

Front Fog Light Switch Removal and Installation (If Equipped)

Precautions: Precautions for Headlight Auto Leveling System Service · Precautions for Body, Cab and Accessories · General safety (00)

Removal
1)Remove switch bezel. icon
2)Disconnect front fog light switch connector.

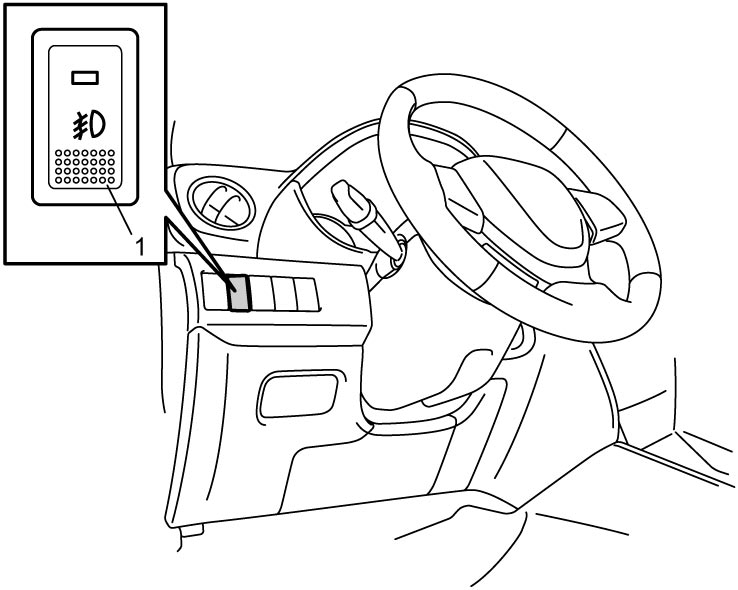

3)Remove front fog light switch (1) from switch bezel.
Installation
Reverse removal procedure.
