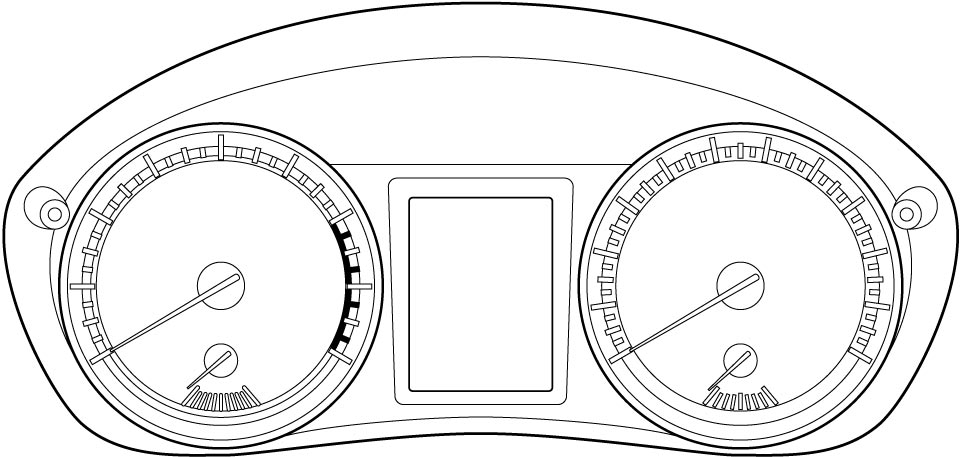

Combination Meter Description

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

•Information display is built into combination meter.
•Warning buzzer is incorporated in the combination meter.
•Fuel gauge data is supplied to the combination meter directly from the fuel level sensor.
•The combination meter is equipped with the oil life monitoring system.

Information Display

The information display indicates various items of information including driving range (estimated mileage with remaining fuel), average speed, selector position (A/T model and twin clutch system model), gear position (M/T model), odometer, trip meter, outside air temperature, instantaneous fuel consumption, average fuel consumption, remaining oil life (if equipped), remaining distance for engine oil change (D16AA model), driving mode (4WD model), RBS indicator light and display (RBS model), tire pressure (TPMS model), brightness of instrument panel, direction and distance of an obstacle sensed by the parking sensor. The information display can also indicate the following messages related to the vehicle.

Information display messages

Message
4WD MODE UNSELECTABLE AUTO MODE ON	PRESS BRAKE AND CLUTCH TO START
4WD SYSTEM HIGH TEMP 4WD IS OFF	PRESS BRAKE SHIFT TO P TO START
CHANGE ENGINE OIL	PUSH START SWITCH
CLEAN PARKING SENSORS	RADAR BRAKE SUPPORT FCN TEMPORARILY DISABLED
DOOR OPEN	RADAR BRAKE SUPPORT SYS INSPECTION REQUIRED
DPF REGENERATING	RADAR BRAKE SUPPORT: NOT ACTIVE BY SENSOR
DRIVE TO REGENERATE DPF	REMOVE WATER FROM FUEL
GEARSHIFT NOT IN PARK	SERVICE 4WD SYSTEM
HIGH TRANSMISSION OIL TEMP	SERVICE BCM SYSTEM
HILL HOLD DISABLE	SERVICE ESP SYSTEM
ICE POSSIBLE DRIVE WITH CARE	SERVICE PARKING SENSORS
IGNITION SWITCH POSITION	SERVICE START SYSTEM
INSPECT CRUISE SYSTEM	SERVICE STEERING LOCK SYSTEM
KEY FOB LOW BATTERY	SERVICE TPMS
KEY FOB NOT DETECTED	TPMS ID NOT REGISTERED
LIGHTS ON	TRN. STEERING WHEEL TO RELEASE LOCK
LOCK MODE CANNOT BE SET	UNEVEN TIRE SIZE 4WD IS OFF
LOW FUEL	WARNING 4WD MODE SWITCH
LOW TIRE PRESSURE	WARNING DPF SYSTEM
MAINTENANCE MODE ACTIVE	WARNING PRE HEAT SYSTEM
NOT LOCKABLE SET TO SNOW MODE FIRST	WARNING WATERINFUEL SYSTEM
PLACE KEY FOB ON START SWITCH

User customization function

The user customization function is activated when the indicator selector knob at the combination meter is held pushed for more than 3 seconds when the ignition is “ON” and the vehicle is stationary. When activated, the function provides the following settings.

•Distance units
•Fuel economy units
•Language
•Resetting average fuel economy
•Temperature units
•Set sensors
•Clock setting
•Door lock setting
•Foot lights
•Turn signal lights
•Oil change
•Anti-theft
•TPMS
•IS A/C
•Default setting
