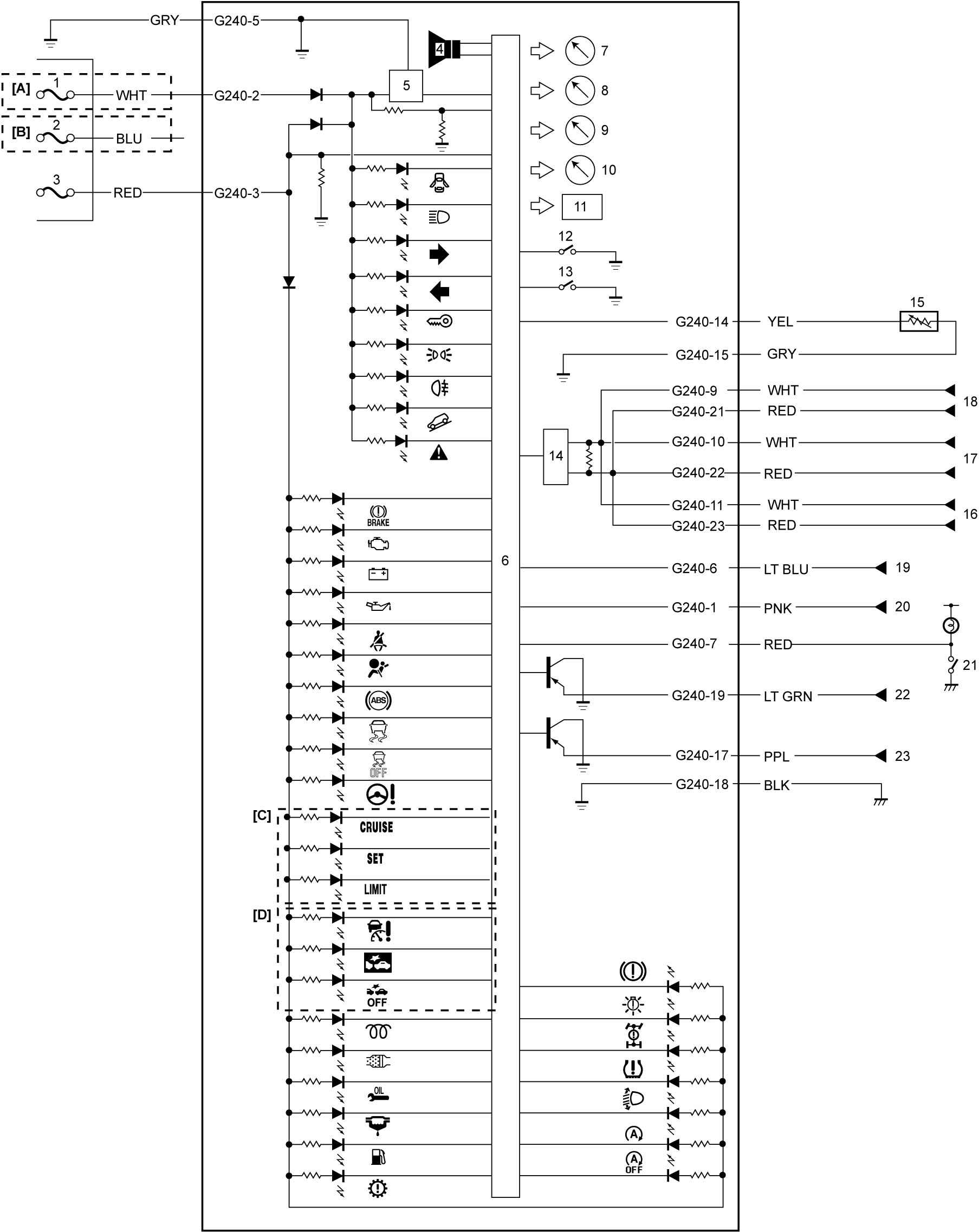

Combination Meter Circuit Diagram
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
| [A]: | Non-ENG A-STOP model | 6. | CPU | 15. | Fuel level sensor |
| [B]: | ENG A-STOP model | 7. | Speedometer | 16. | P/S control module |
| [C]: | Cruise control model | 8. | Tachometer | 17. | DLC |
| [D]: | RBS model | 9. | Fuel meter | 18. | Steering angle sensor |
| 1. | “DOME” fuse | 10. | Temperature meter | 19. | Parking sensor system control module (if equipped) |
| 2. | “RADIO2” fuse | 11. | LCD | 20. | Passenger air bag indicator (if equipped) |
| 3. | “MTR” fuse | 12. | Trip switch | 21. | Dimmer switch |
| 4. | Buzzer | 13. | Mode switch | 22. | Bulb illumination signal |
| 5. | Voltage regulator circuit | 14. | CAN driver | 23. | LED illumination signal |
