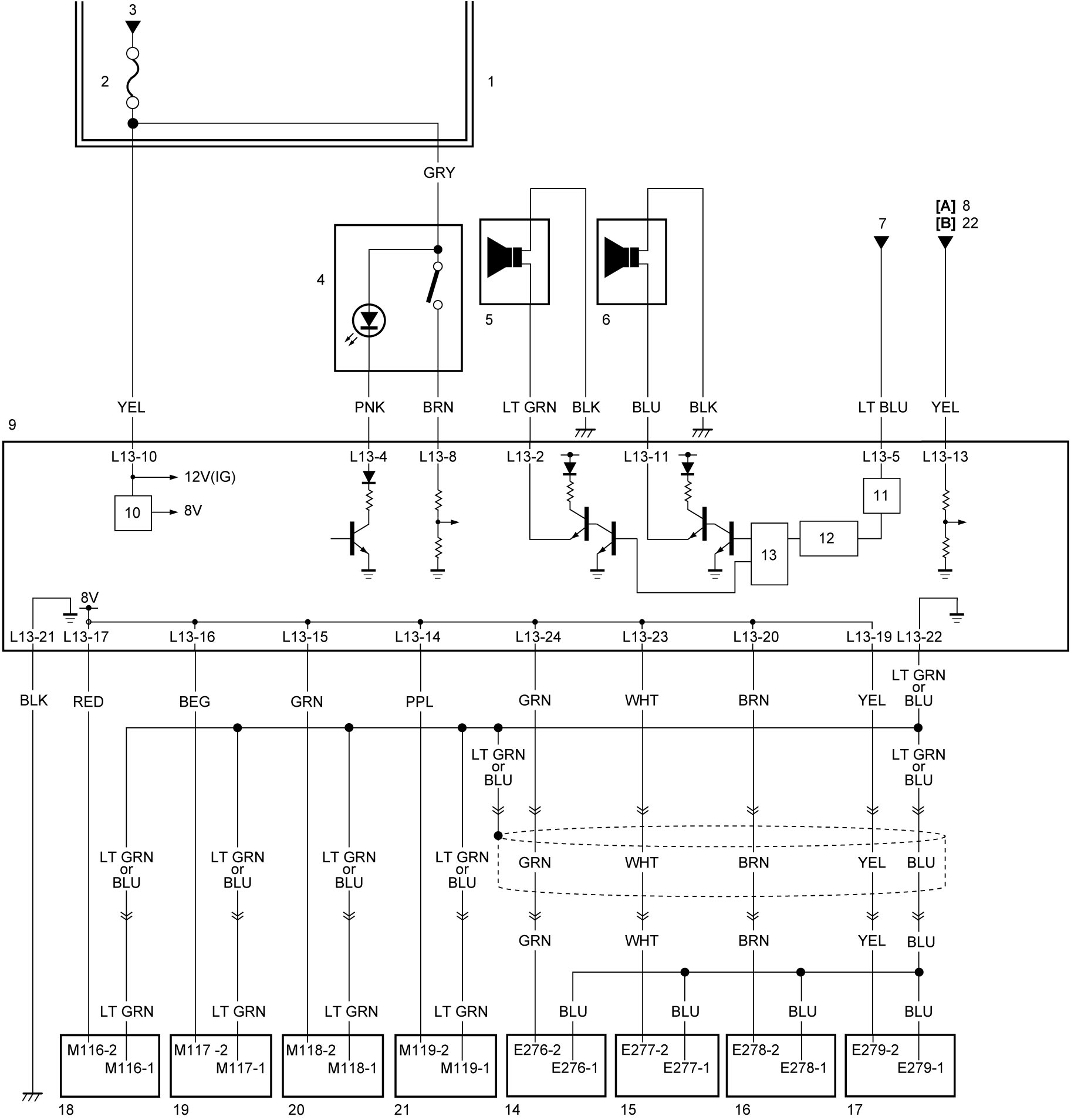

Parking Sensor System Circuit Diagram (If Equipped)
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
| [A]: | M/T model | 7. | Combination meter | 15. | Parking sensor (Front-center-left) (if equipped) |
| [B]: | A/T model and twin clutch system model | 8. | Back up light switch | 16. | Parking sensor (Front-center-right) (if equipped) |
| 1. | Junction block | 9. | Parking sensor system control module | 17. | Parking sensor (Front-right) (if equipped) |
| 2. | “BACK” fuse | 10. | Voltage regulator circuit | 18. | Parking sensor (Rear-left) |
| 3. | IG1 relay | 11. | LIN driver | 19. | Parking sensor (Rear-center-left) |
| 4. | Parking sensor OFF switch | 12. | CPU | 20. | Parking sensor (Rear-center-right) |
| 5. | Parking sensor front buzzer (if equipped) | 13. | Buzzer driver | 21. | Parking sensor (Rear-right) |
| 6. | Parking sensor rear buzzer | 14. | Parking sensor (Front-left) (if equipped) | 22. | Back up light relay |
