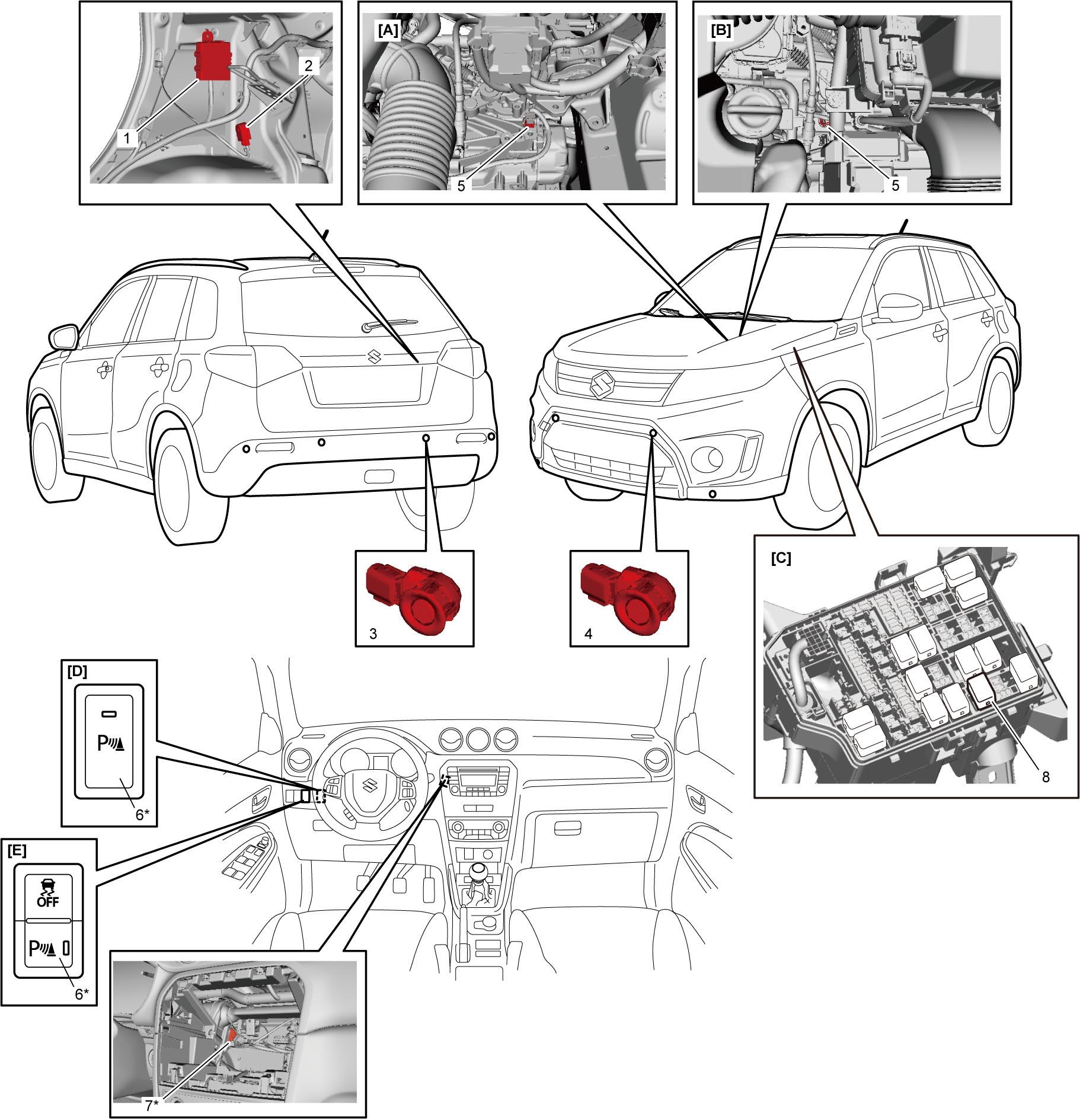

Parking Sensor System Component Location (If Equipped)
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with asterisk (*) are installed at the opposite side.
| [A]: | 5 M/T model | 1. | Parking sensor system control module | 6. | Parking sensor OFF switch |
| [B]: | 6 M/T model | 2. | Parking sensor rear buzzer | 7. | Parking sensor front buzzer (if equipped) |
| [C]: | A/T model and twin clutch system model | 3. | Rear parking sensor | 8. | Back up light relay |
| [D]: | Without ESP® OFF switch | 4. | Front parking sensor (if equipped) | ||
| [E]: | With ESP® OFF switch | 5. | Back up light switch |
