Parking Sensor System Control Module Removal and Installation (If Equipped)

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

Removal

1)Remove right side rear quarter inner lower trim.

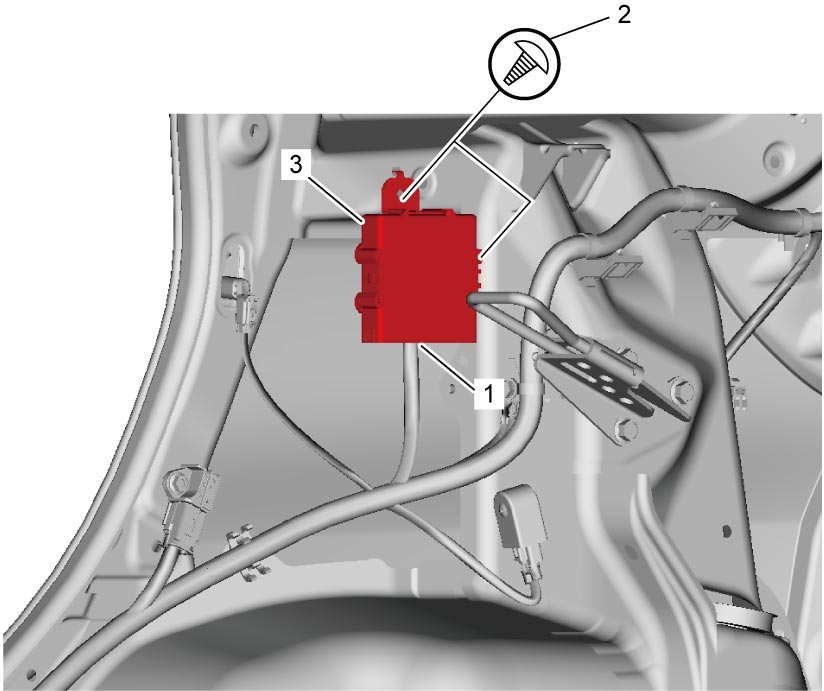

2)Disconnect parking sensor system control module connector (1).

3)Remove screws (2) and remove parking sensor system control module (3).

Installation

Reverse removal procedure.
