Suzuki Vitara (LY) 2016-2017 · Service Manual Repair Instructions

Horn Inspection

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

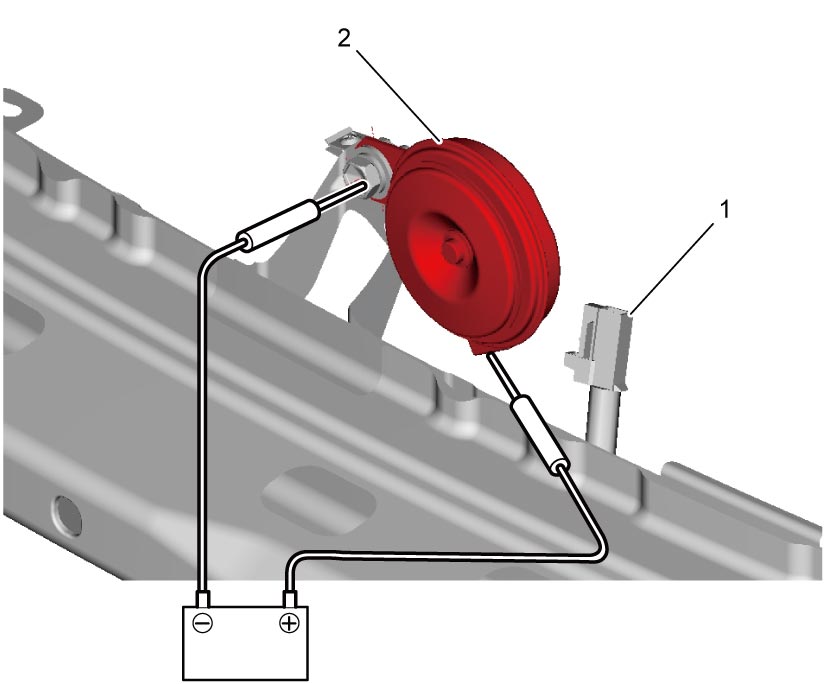

1)Disconnect horn connector (1) from horn (2).
2)Check that horn sounds when horn connector is connected to battery positive (+) terminal and battery negative (–) terminal is connected to ground. Replace horn if it does not sound.
