Rain-Sensing Wiper System Component Location (If Equipped)
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

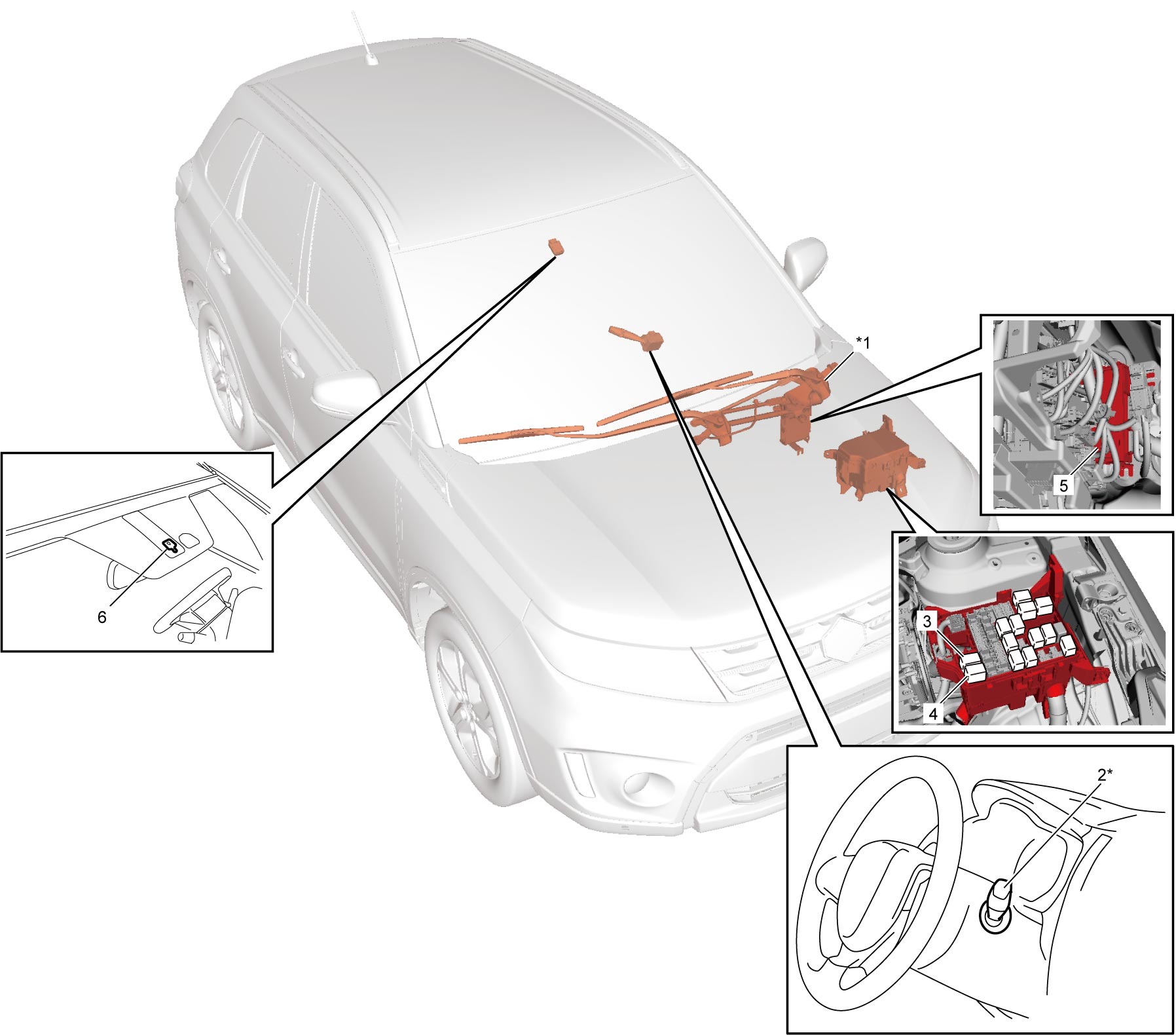

The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.
| 1. | Windshield wiper motor assembly | 3. | Windshield wiper relay | 5. | BCM |
| 2. | Wiper and washer switch | 4. | Windshield wiper HI/LO relay | 6. | Rain / light sensor |
