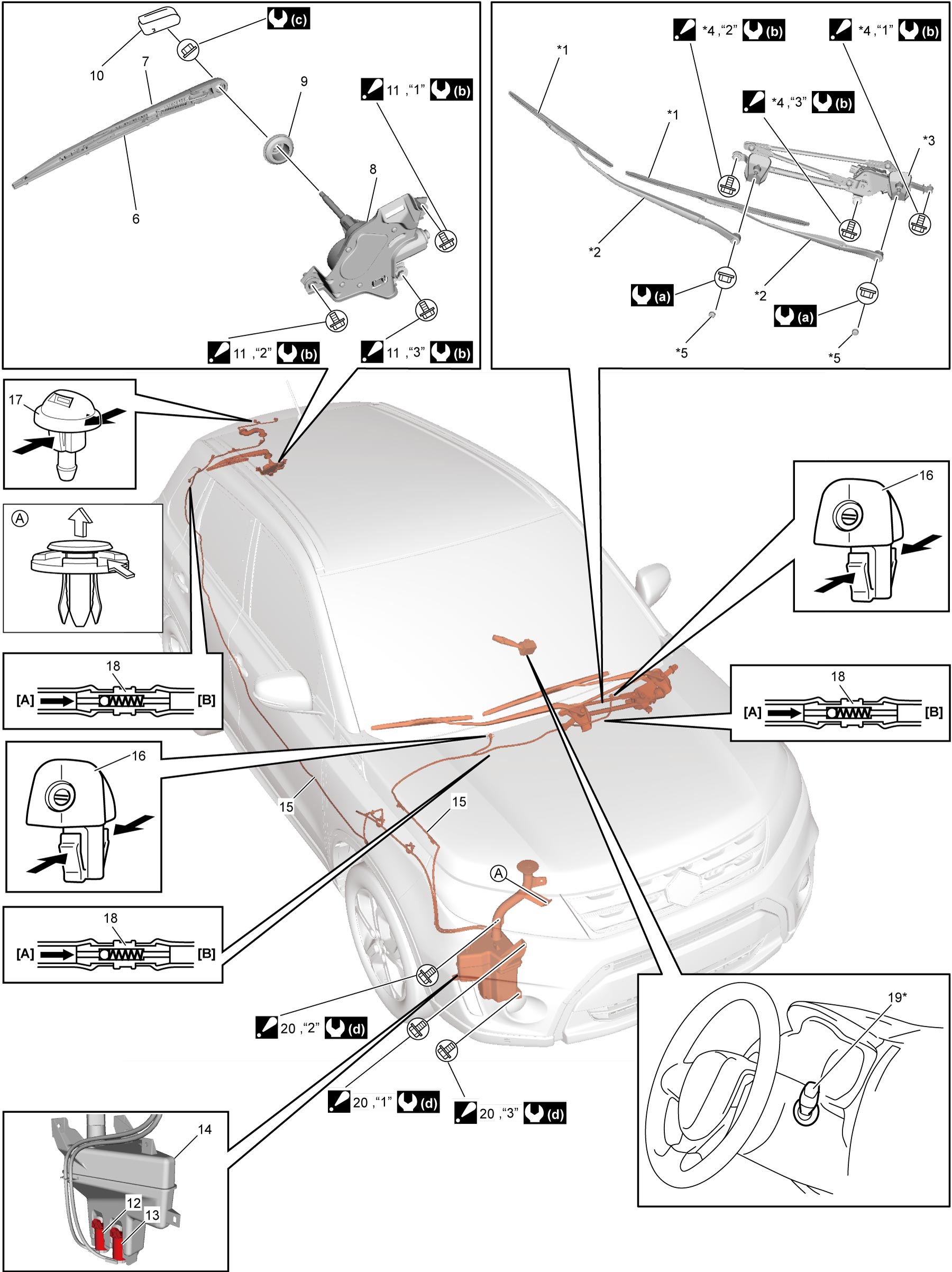

Wiper and Washer Component Location
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with asterisk (*) are installed at the opposite side.
| [A]: | Pump side | 8. | Rear wiper motor | 17. | Rear washer nozzle |
| [B]: | Nozzle side | 9. | Rear wiper pivot cap | 18. | Check valve |
| 1. | Windshield wiper blade | 10. | Rear wiper arm cover | 19. | Wiper and washer switch |
| 2. | Windshield wiper arm |
 11. |
Rear wiper motor bolt : Tighten bolts in numerical order (“1” – “3”). |
20. |
Washer tank bolt : Tighten bolts in numerical order (“1” – “3”). |
| 3. | Windshield wiper motor assembly | 12. | Windshield washer pump |
 : |
20 N·m (2.0 kgf-m, 15.0 lbf-ft) |
|
4. |
Windshield wiper motor bolt : Tighten bolts in numerical order (“1” – “3”). |
13. | Rear washer pump |
 : |
8.3 N·m (0.85 kgf-m, 6.5 lbf-ft) |
| 5. | Windshield wiper pivot cap | 14. | Washer tank |
 : |
7.9 N·m (0.81 kgf-m, 6.0 lbf-ft) |
| 6. | Rear wiper blade | 15. | Washer hose |
 : |
3.9 N·m (0.40 kgf-m, 3.0 lbf-ft) |
| 7. | Rear wiper arm | 16. | Windshield washer nozzle |
