Washer Tank and Washer Pump Removal and Installation
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)
Removal
1)Remove front bumper.
2)Disconnect wire harness clamps, washer pump connectors and washer hoses.

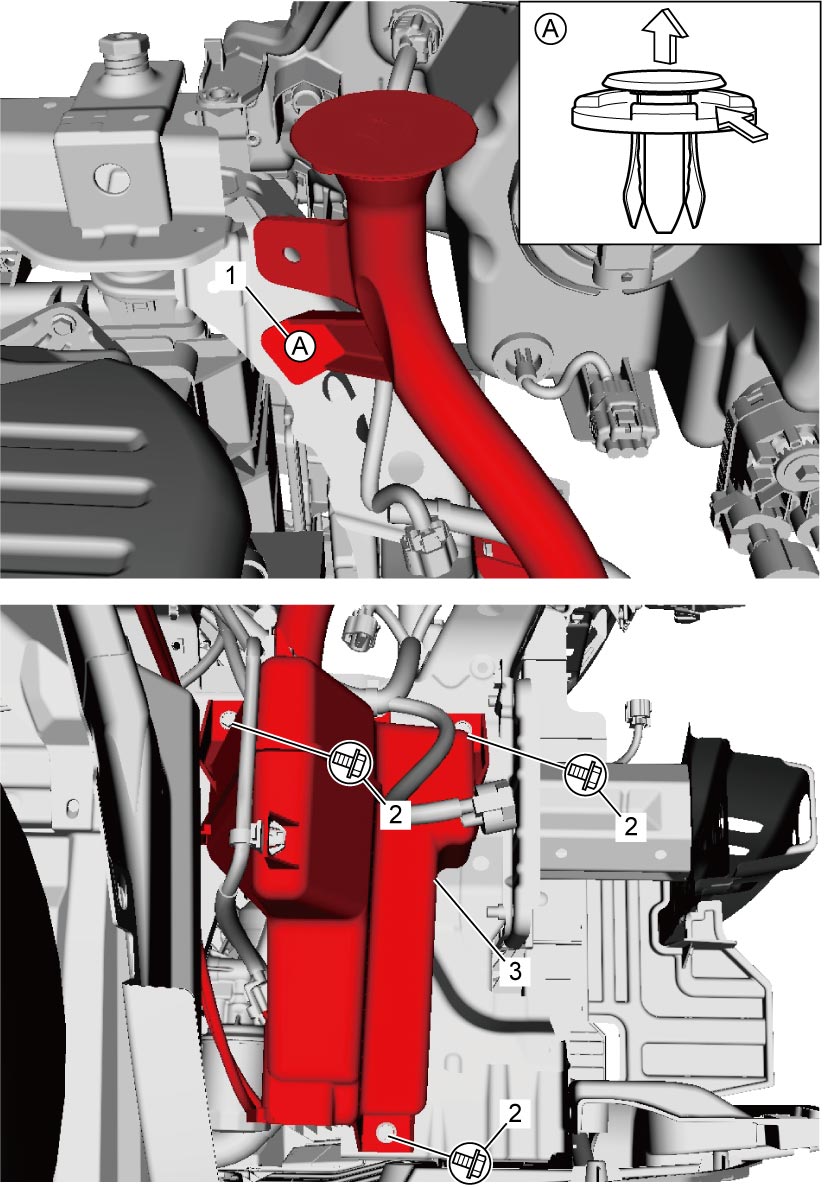

3)Remove washer tank clip (1) and bolts (2), and remove washer tank (3).

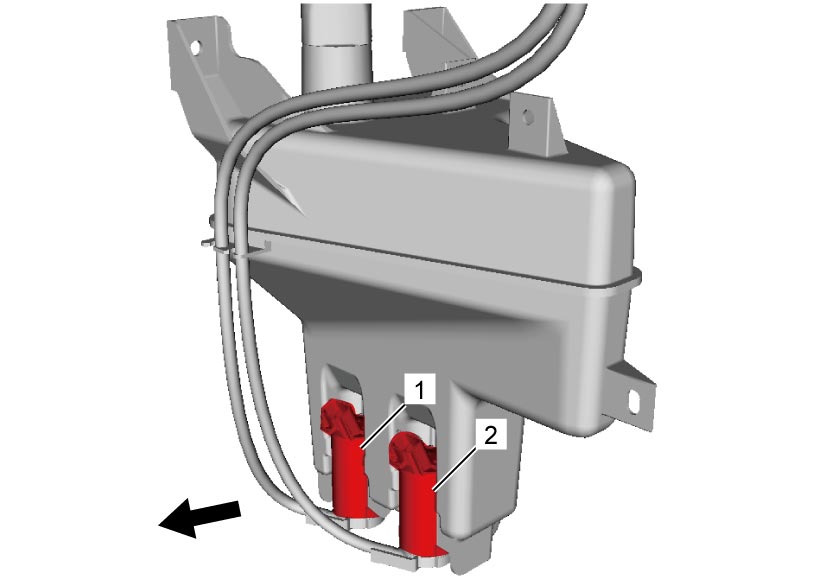

4)Remove windshield washer pump (1), rear washer pump (2) from washer tank.
Installation
Reverse removal procedure noting the following point.
