Front Bumper Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

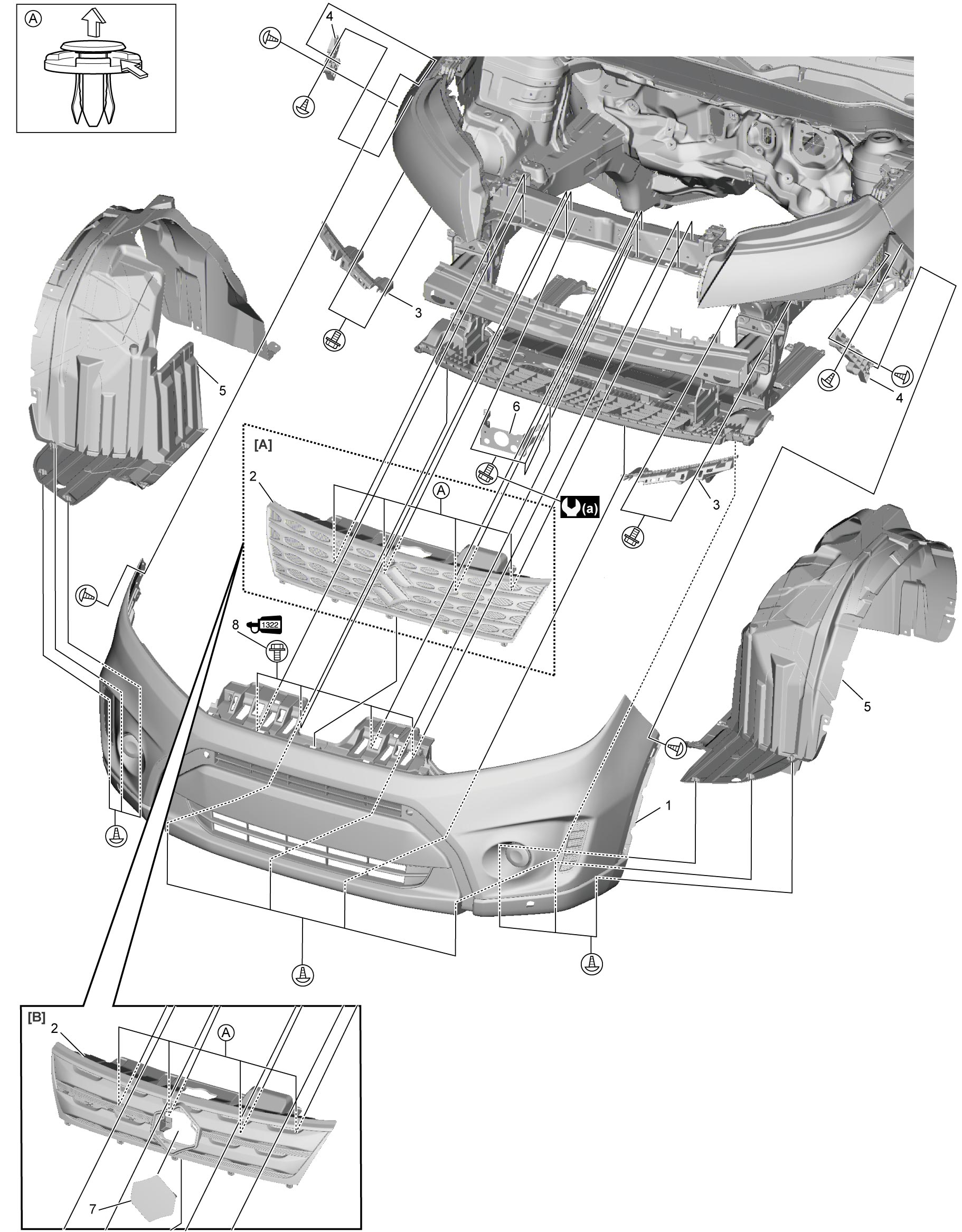

Removal
1)Remove radiator grille (2).
2)Remove front bumper (1).
3)Remove front bumper front holder (3) and front bumper side holder (4).
4)Remove sensor cover (7) and sensor bracket (6) if necessary. (if equipped):
| [A]: | Without RBS | 5. | Front fender lining |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| [B]: | With RBS |
 8. |
Front bumper bolt : Apply thread lock cement 99000-32110 to thread part. |
Installation
Reverse remove procedure.
