Windshield Wiper Motor Removal and Installation
Precautions: Precautions for Working on Rain-Sensing Wiper System · Precautions for Body, Cab and Accessories · General safety (00)
Removal

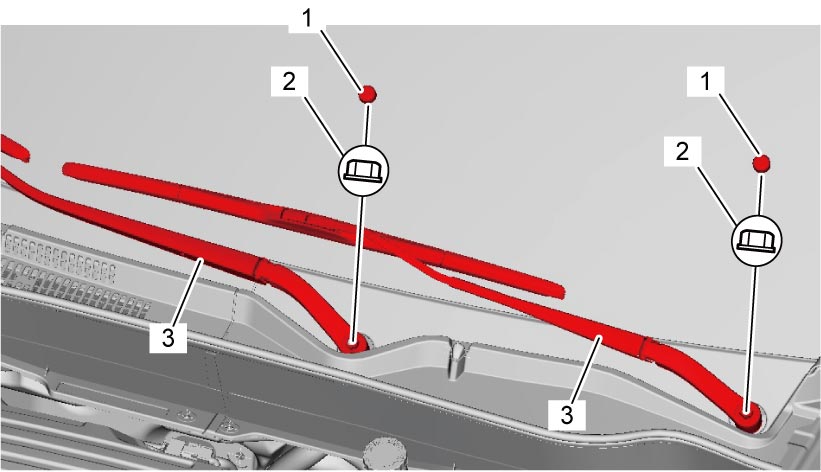

1)Remove wiper pivot caps (1) and wiper arm nuts (2), and remove windshield wiper arms (3).
2)Remove cowl top garnish.

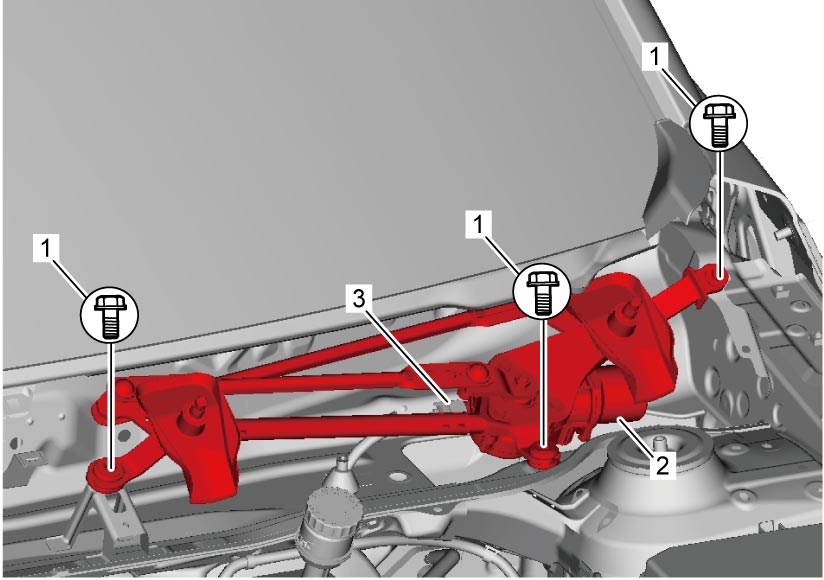

3)Remove wiper motor bolts (1) and remove wiper motor (2).
4)Disconnect wiper motor connector (3).
Installation
Reverse removal procedure noting the following points.

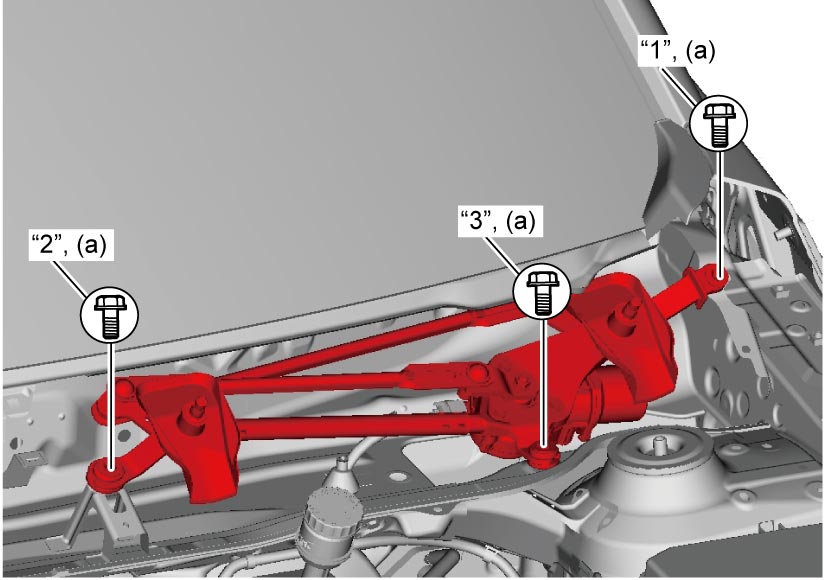

•Tighten wiper motor bolts in numerical order (“1” – “3”) to specified torque.

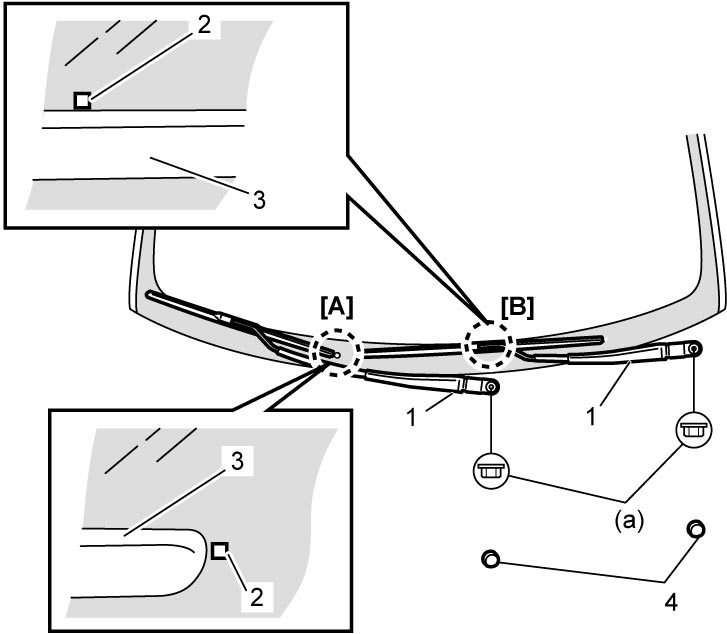

•Install windshield wiper arms (1) in positions shown in figure and tighten wiper arm nuts to specified torque.
| [A]: | Align tip of windshield wiper blade with matchmark. |
| [B]: | Align windshield wiper blade with matchmark. |
| 2. | Matchmark |
| 3. | Windshield wiper blade |
| 4. | Wiper pivot cap |
