Cowl Top Garnish Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

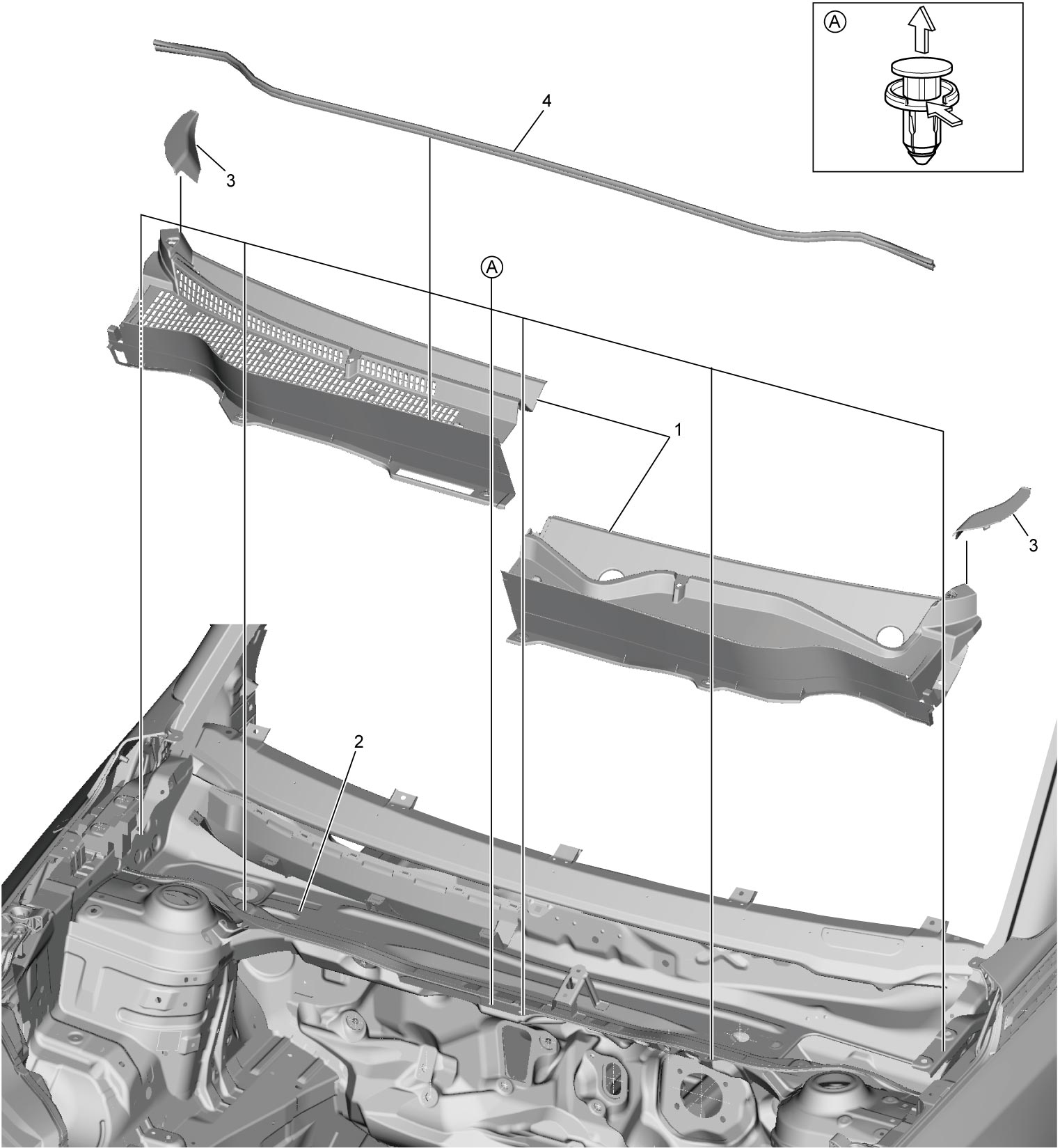

Removal
1)Remove windshield wiper arms.
2)Remove cowl top side garnishes (3).
3)Remove washer hose and then remove cowl top garnish (1).
4)Remove washer nozzle from cowl top garnish if necessary.
5)Remove the following parts from cowl upper panel (2).
•ECM (D16AA model):
•Windshield wiper motor and wiper motor harness:
•Windshield wiper motor and wiper motor harness:
| 4. | Hood rear seal |
Installation
Reverse removal procedure.
