Power Window System Description
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
•Power window system consists of power window main switch, power window sub switches, driver power window regulator and other power window regulators.
•When driver power window switch is pushed down to the second step (auto switch and down switch are turned on), CPU in power window main switch turns on down relay, thereby causing door glass to move down fully automatically. After a certain period of time, CPU turns off the relay to discontinue auto down operation of door glass.
•When power window lock switch is pushed (lock position), ground line for other than driver power window circuit is opened and operations (up/down) of all windows other than driver power window are disabled.
•When driver power window switch is pushed down to the second step (auto switch and down switch are turned on), CPU in power window main switch turns on down relay, thereby causing door glass to move down fully automatically. After a certain period of time, CPU turns off the relay to discontinue auto down operation of door glass.
•When power window lock switch is pushed (lock position), ground line for other than driver power window circuit is opened and operations (up/down) of all windows other than driver power window are disabled.

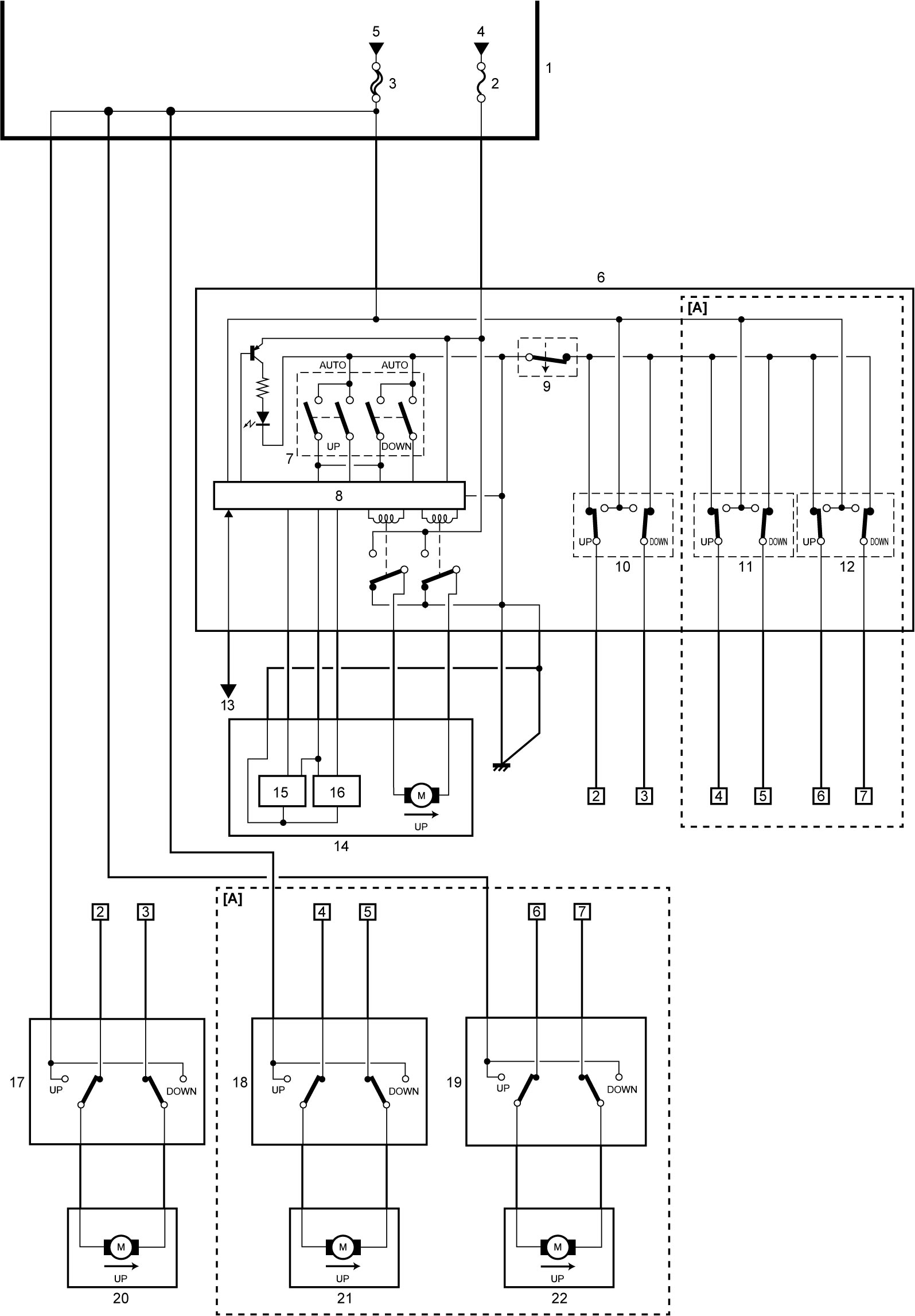

| [A]: | Power window type | 8. | CPU | 16. | Hall IC B |
| 1. | J/B | 9. | Power window lock switch | 17. | Power window sub switch |
| 2. | “P/W T” fuse | 10. | Passenger power window switch (in power window main switch) | 18. | Rear right power window sub switch |
| 3. | “P/W” fuse | 11. | Rear right power window switch (in power window main switch) | 19. | Rear left power window sub switch |
| 4. | Battery | 12. | Rear left power window switch (in power window main switch) | 20. | Passenger power window motor |
| 5. | Ignition switch (ignition switch model) or IG2 relay (keyless push start model) | 13. | Driver door switch | 21. | Rear right power window motor |
| 6. | Power window main switch | 14. | Driver power window motor | 22. | Rear left power window motor |
| 7. | Driver power window switch | 15. | Hall IC A |
