Inner Rear View Mirror Removal and Installation
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
Removal

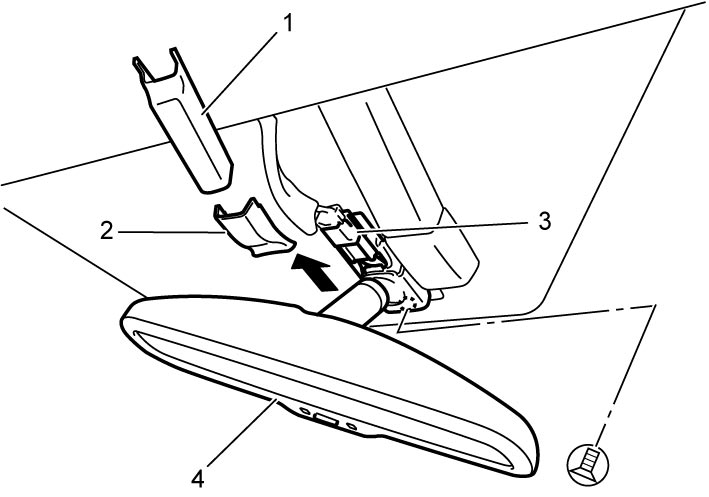

Equipped with auto dimming
1)Remove harness cover (1) and mirror stay cover (2).
2)Disconnect mirror connector (3).
3)Remove screw and inner rear view mirror (4) in arrow direction to remove it.

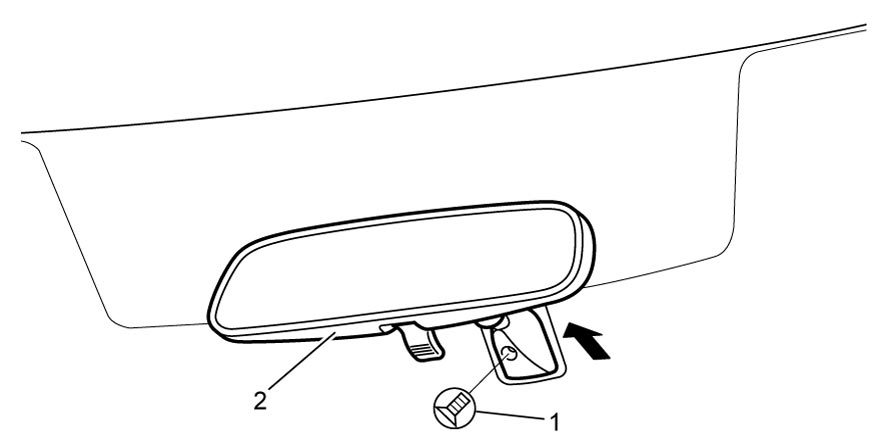

Not Equipped with auto dimming
1)Remove screw (1) and inner rear view mirror (2) in arrow direction.
