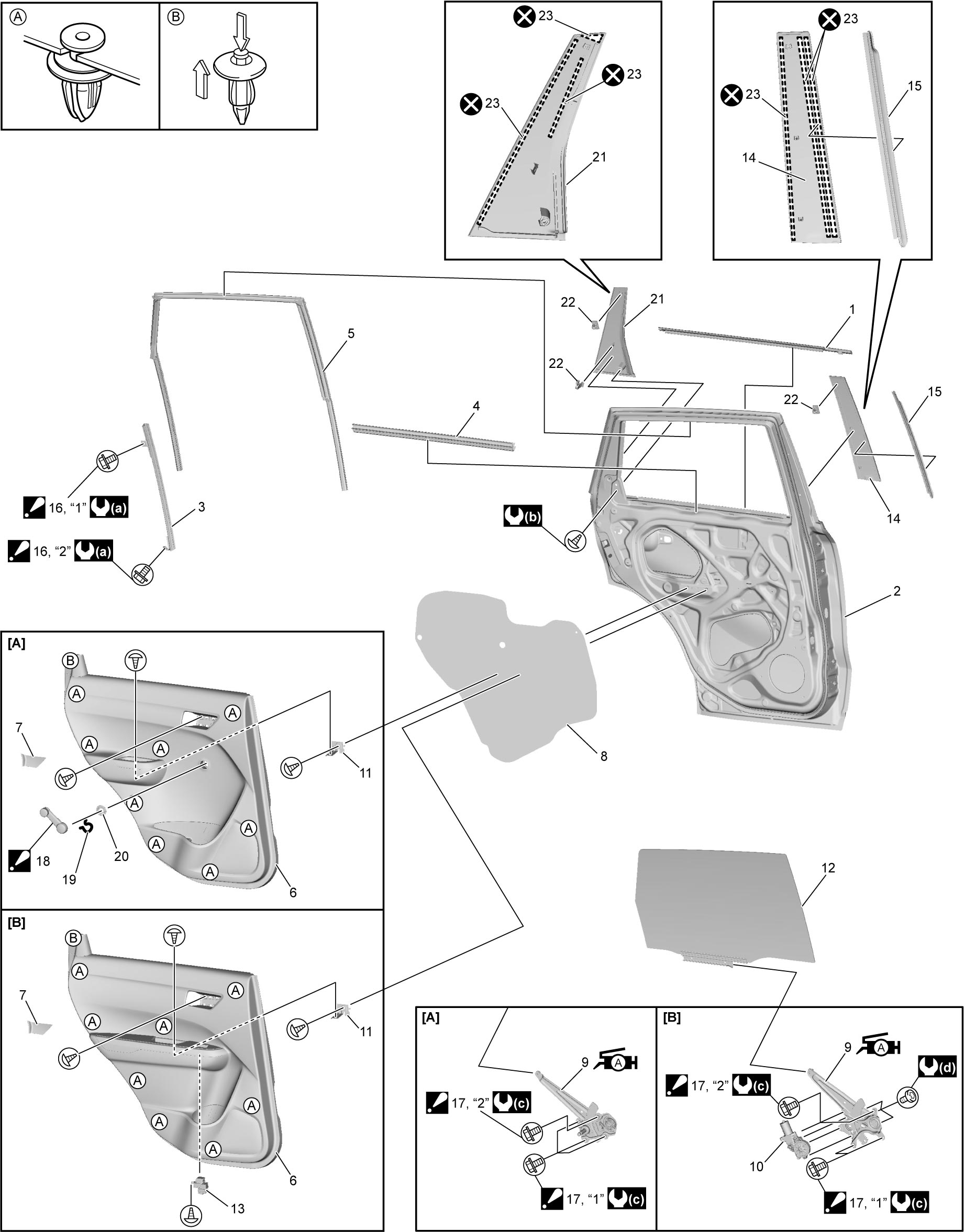

Rear Door Window Glass Components
Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)
| [A]: | Manual window type |
 9. |
Rear window regulator assembly : Apply grease 99000-25011 to sliding parts. |
19. | Snap ring |
| [B]: | Power window type | 10. | Rear window regulator motor | 20. | Window regulator handle escutcheon |
| 1. | Rear door outer weather-strip | 11. | Door trim bracket | 21. | Rear door outer garnish |
| 2. | Door panel | 12. | Rear door glass | 22. | Clip |
| 3. | Rear door sash | 13. | Power window sub switch | 23. | Double-stick tape |
| 4. | Rear door inner weather-strip | 14. | Rear door center pillar garnish |
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 5. | Glass run | 15. | Rear door center pillar weather-strip |
 : |
3.0 N·m (0.31 kgf-m, 2.5 lbf-ft) |
| 6. | Door trim |
 16. |
Rear door sash bolt : Tighten bolts in numerical order (“1” – “2”). |
 : |
8.4 N·m (0.86 kgf-m, 6.5 lbf-ft) |
| 7. | Inside handle cap |
17. |
Rear window regulator bolt : Tighten bolts in numerical order (“1” – “2“). |
 : |
6.0 N·m (0.61 kgf-m, 4.5 lbf-ft) |
| 8. | Door sealing cover |
18. |
Window regulator handle : For installation, refer to Rear Door Glass Removal and Installation. |
 : |
Do not reuse. |
