Rear Window Regulator Assembly Inspection (If Equipped)

Precautions: Precautions for Working on Glass · Precautions for Working on Power Window · Precautions for Body, Cab and Accessories · General safety (00)

Reference: Rear Window Regulator Assembly Removal and Installation (If Equipped)

Check motor movement as follows.

1)Connect battery positive terminal to terminal “2” and connect battery negative terminal to terminal “1”. (UP operation)

2)Connect battery positive terminal to terminal “1” and connect battery negative terminal to terminal “2”. (DOWN operation)

If operation is not smooth, check glass run, door outer weather-strip, door inner weather-strip and grease in link. If those parts are in good condition, replace window regulator assembly.

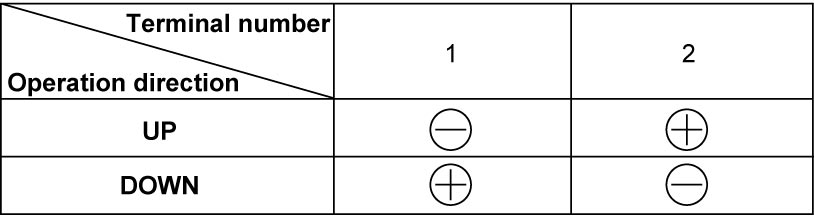

Power window motor operation

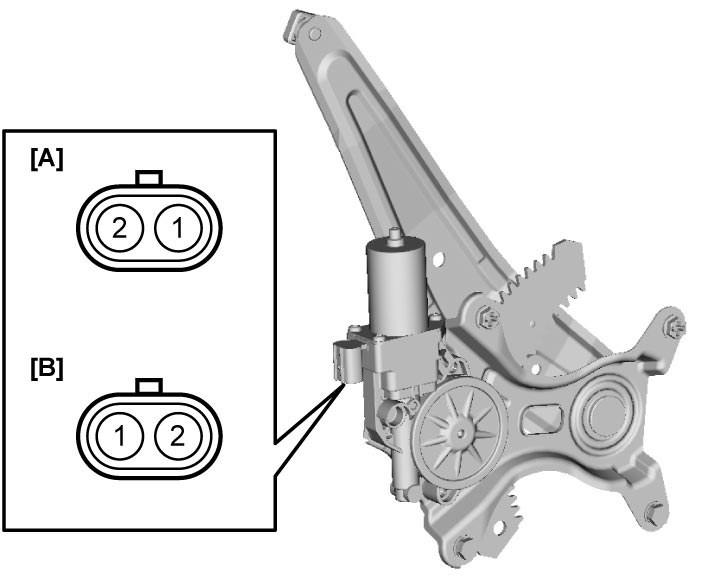

[A]:

Left side

[B]:

Right side
