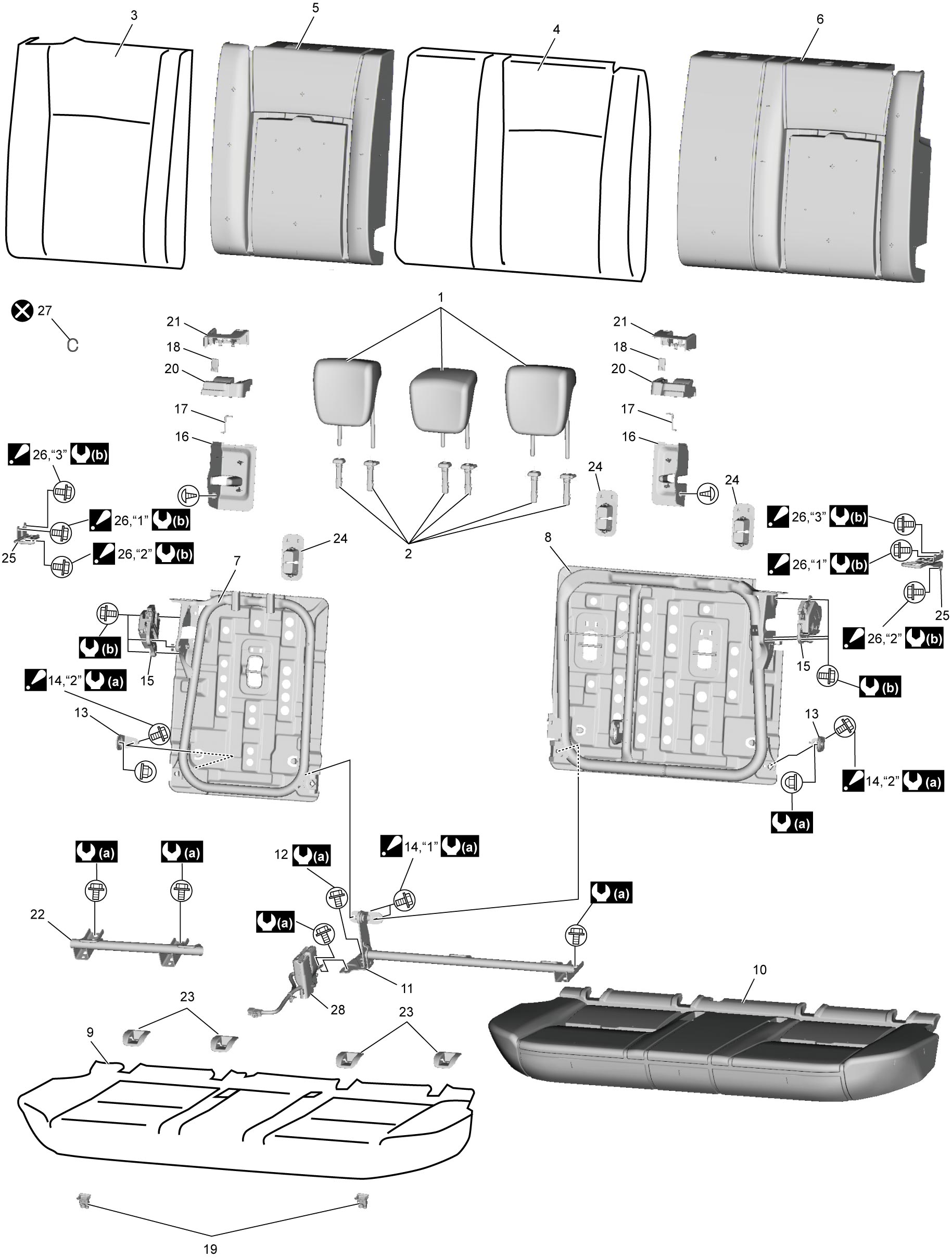

Rear Seat Components
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
| 1. | Headrest | 12. | Rear seat center hinge bolt | 23. | Lower anchor cover |
| 2. | Headrest guide | 13. | Rear seat side hinge | 24. | Tether anchor cover |
| 3. | Right side rear seatback trim |
 14. |
Rear seat hinge bolt : Tightening order: “1” → “2” |
25. | Seatback striker |
| 4. | Left side rear seatback trim | 15. | Rear seatback lock |
26. |
Seatback striker bolt : Tightening order: “1” → “2” → “3” |
| 5. | Right side rear seatback pad | 16. | Rear seatback lock hole cover | 27. | Trim ring |
| 6. | Left side rear seatback pad | 17. | Rear seatback lock wire | 28. | Rear seat belt buckle |
| 7. | Right side rear seatback frame | 18. | Rear seatback lock indicator |
 : |
43 N·m (4.4 kgf-m, 32.0 lbf-ft) |
| 8. | Left side rear seatback frame | 19. | Rear seat cushion hook |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
| 9. | Rear seat cushion trim | 20. | Rear seatback lock knob |
 : |
Do not reuse. |
| 10. | Rear seat cushion pad | 21. | Rear seatback lock bezel | ||
| 11. | Rear seat center hinge | 22. | Child anchor bracket |
