Front Bumper Member Removal and Installation

Removal

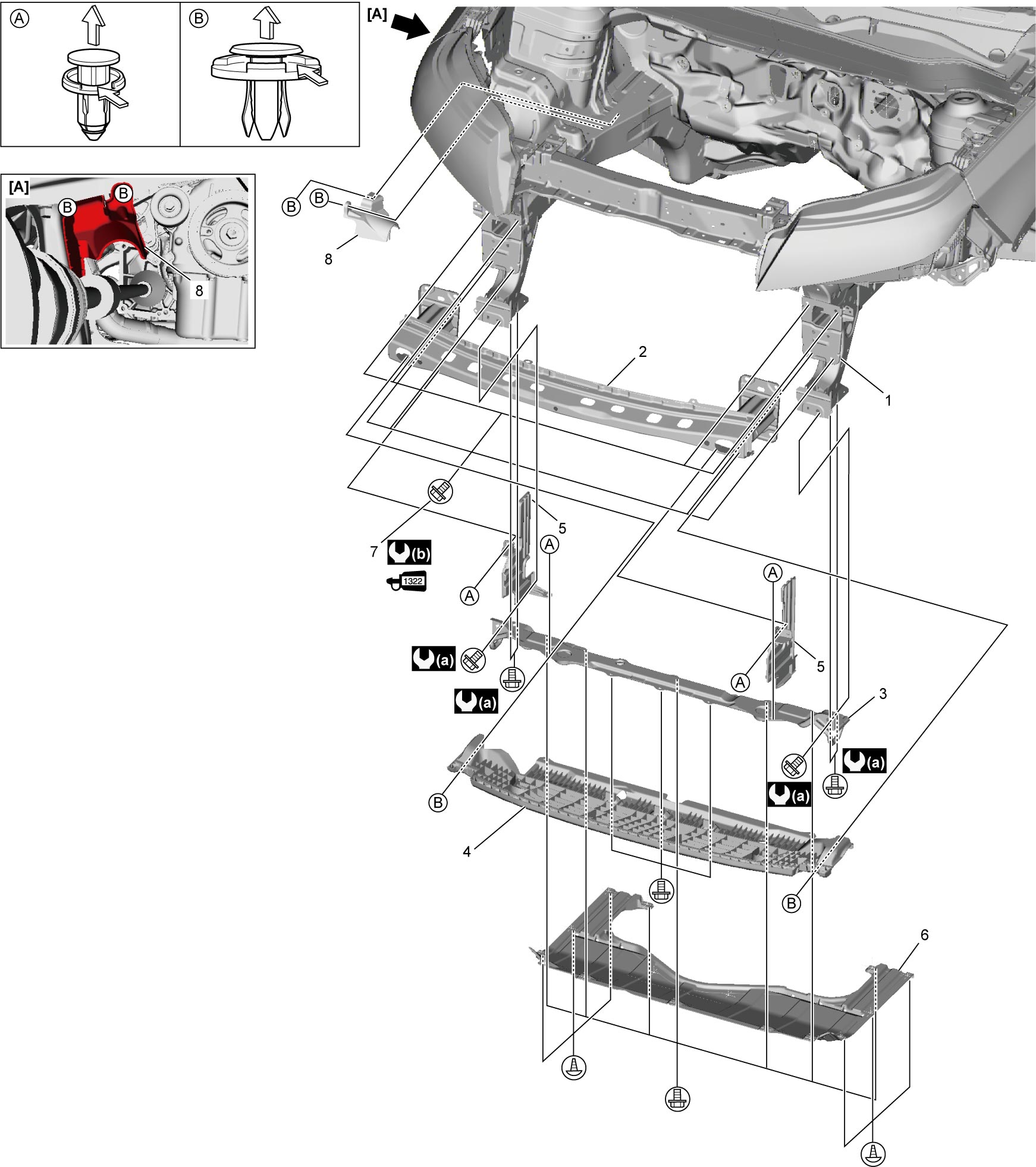

1)Remove engine undercover (6).

2)Remove front bumper lower absorber (4).

3)Remove front lower crossmember (3) if necessary.

4)Remove front end side lower cover (if equipped) (5).

5)Remove front bumper member (2).

6)Remove splash cover (if equipped) (8) if necessary.

1.	Front bumper member plate	:	59 N·m (6.0 kgf-m, 43.5 lbf-ft)
7.	Front bumper member bolt : Apply thread lock cement 99000-32110 to thread part.	:	23 N·m (2.3 kgf-m, 17.0 lbf-ft)

Installation

Reverse remove procedure.
