Rear Bumper Member Removal and Installation

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

Reference: Rear Bumper Removal and Installation

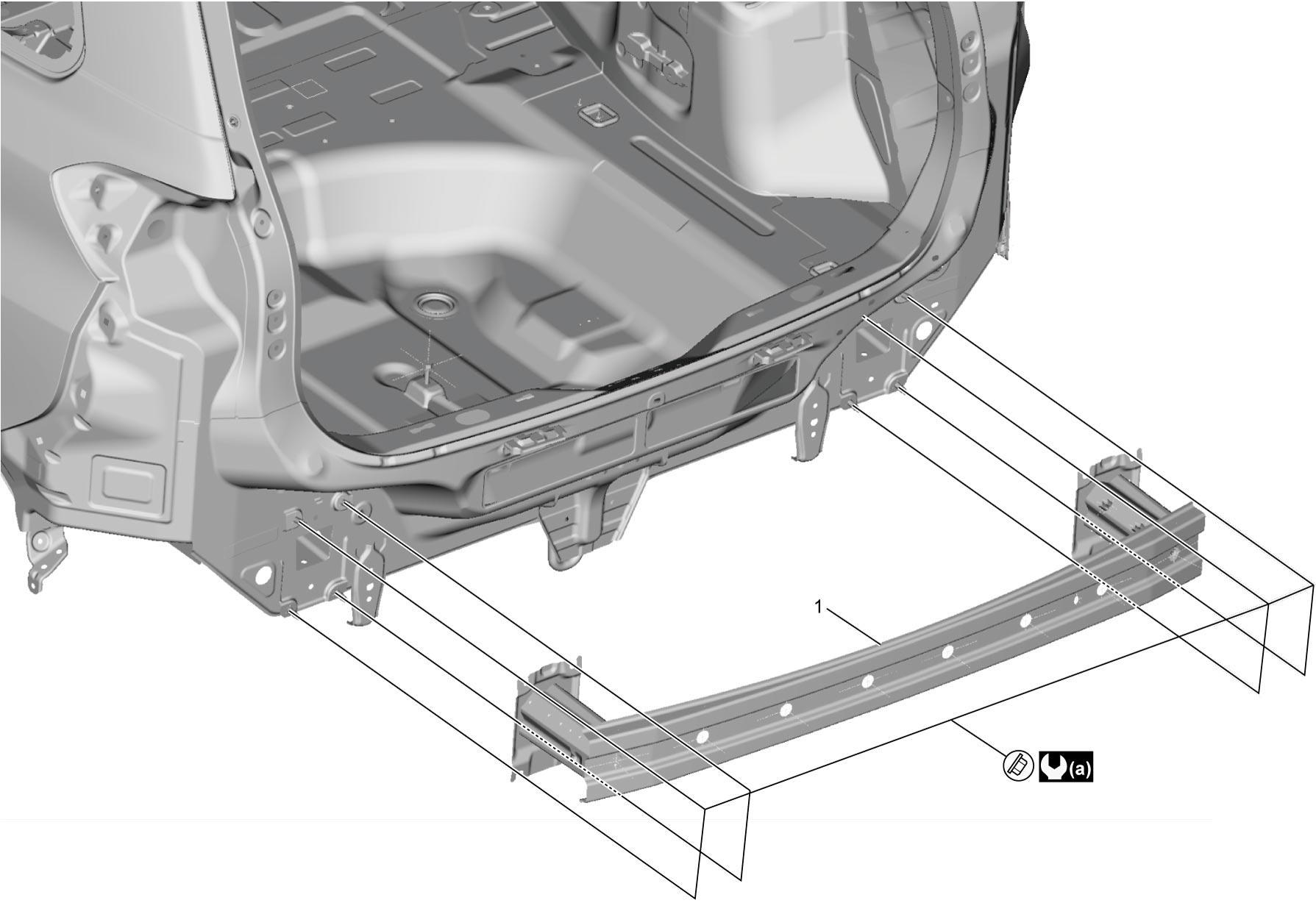

Remove and install related parts referring to figure.

1.

Rear bumper member

:

29 N·m (2.9 kgf-m, 21.0 lbf-ft)
