Side Sill Guard Removal and Installation

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

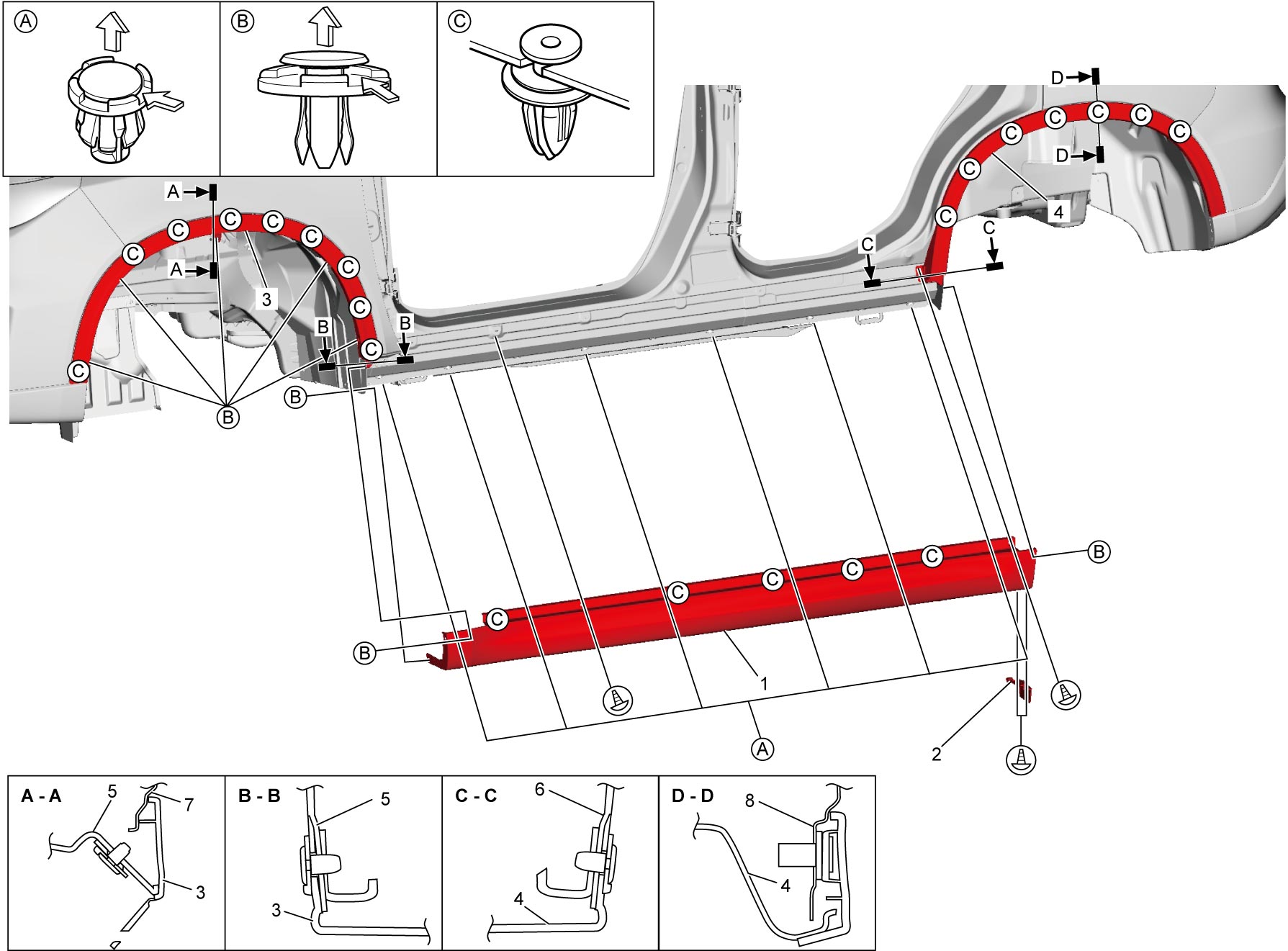

Remove and install related parts referring to figure.

1.	Side sill guard	4.	Rear fender splash guard	7.	Front fender panel
2.	Side sill rear strake	5.	Front fender lining	8.	Side body outer panel
3.	Front fender splash guard	6.	Rear fender lining
