Roof Molding Removal and Installation
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

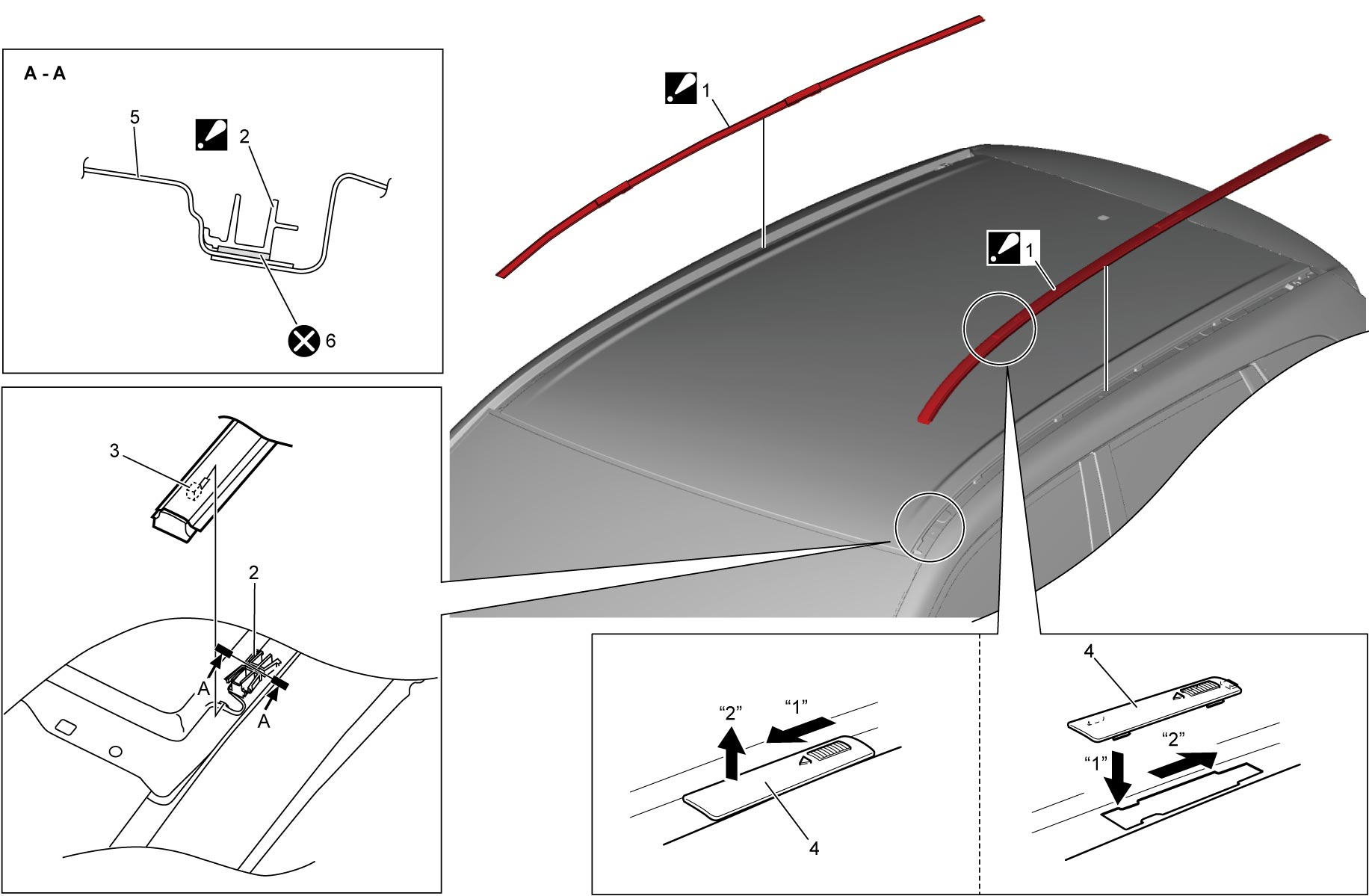

Remove and install related parts referring to figure.
 1. |
Roof molding : Press down until click is heard to install roof molding and roof molding clip. |
5. | Roof panel |
|
2. |
Roof molding clip : Install roof molding clips so that they are in close contact with roof panel. |
6. | Double-stick tape |
| 3. | Positioning rib : Align with roof molding positioning location. |
 : |
Do not reuse. |
| 4. | Roof molding cap |
