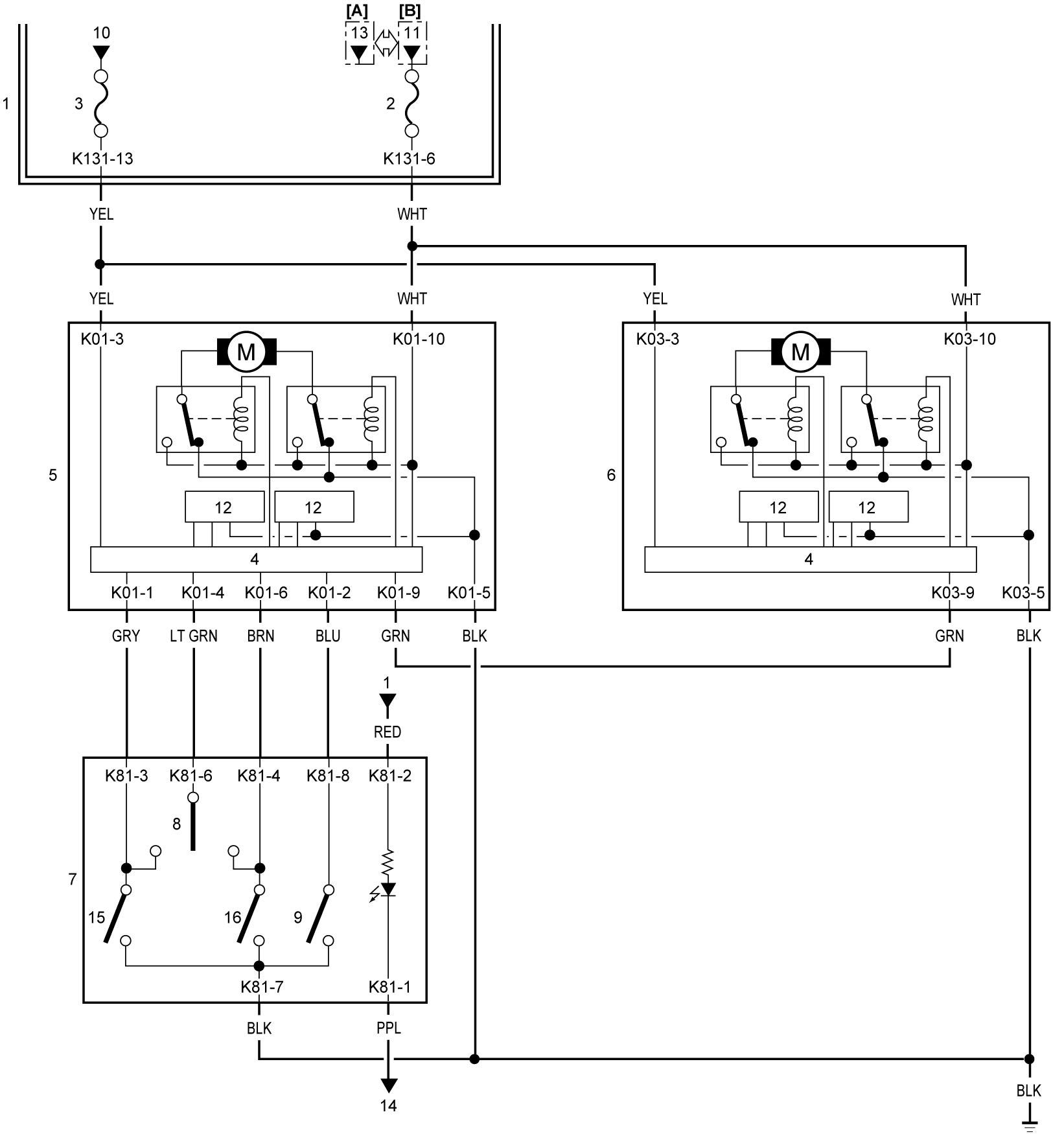

Sun Roof System Circuit Diagram
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
| [A]: | Ignition switch model | 5. | Sun roof motor (for sun roof glass) | 11. | To IG2 relay |
| [B]: | Keyless push start model | 6. | Sun roof motor (for sunshade) | 12. | Hall IC |
| 1. | Individual circuit fuse box No.2 (in J/B) | 7. | Sun roof switch | 13. | To ignition switch |
| 2. | “S/R” fuse | 8. | Full open / Full close | 14. | To combination meter |
| 3. | “IG2 SIG” fuse | 9. | PUSH TILT | 15. | OPEN |
| 4. | CPU | 10. | To main fuse box | 16. | CLOSE |
