Sun Roof Switch Inspection
Precautions: Precautions for Sun Roof · Precautions for Disassembly and Reassembly · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
Set tester at diode range when measuring between terminals “1” and “2”.
Check continuity between terminals of sun roof switch connector at each switch position. If check result is not as specified, replace switch.

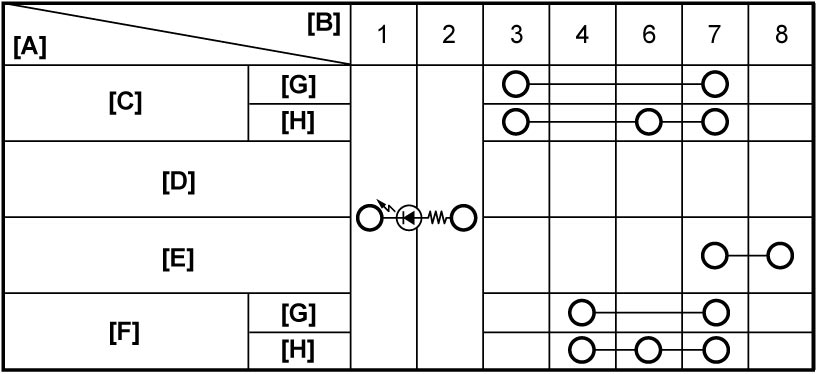

Sun roof switch continuity
| [A]: | Switch position | [E]: | PUSH TILT |
| [B]: | Terminal | [F]: | CLOSE |
| [C]: | OPEN | [G]: | Manual |
| [D]: | OFF | [H]: | Auto |

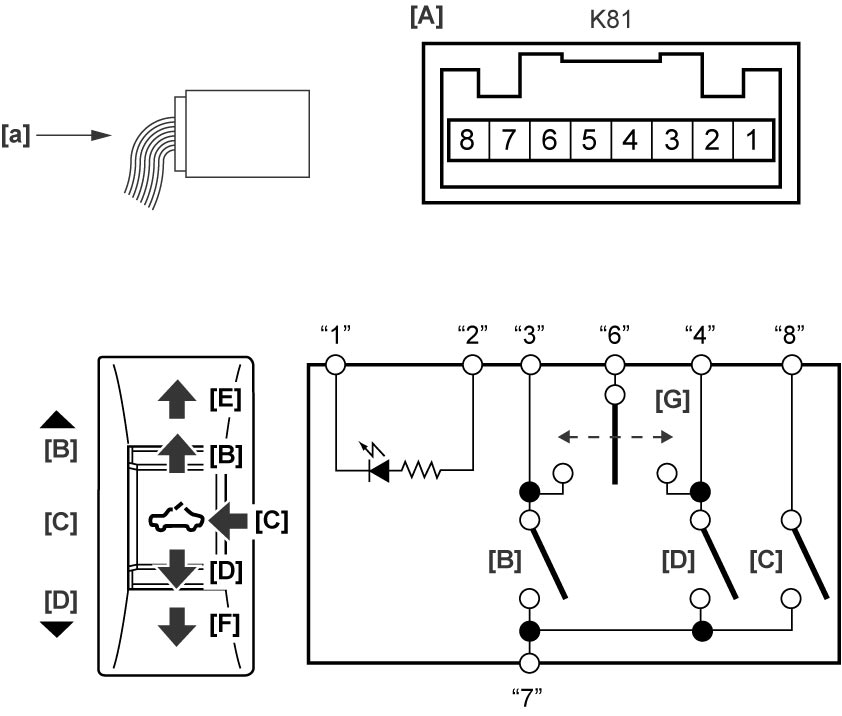

| [A]: | Sun roof switch connector (View: [a]) | [E]: | Full open |
| [B]: | OPEN | [F]: | Full close |
| [C]: | PUSH TILT | [G]: | Full open / Full close |
| [D]: | CLOSE |
