Hood Lock Release Cable Components
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

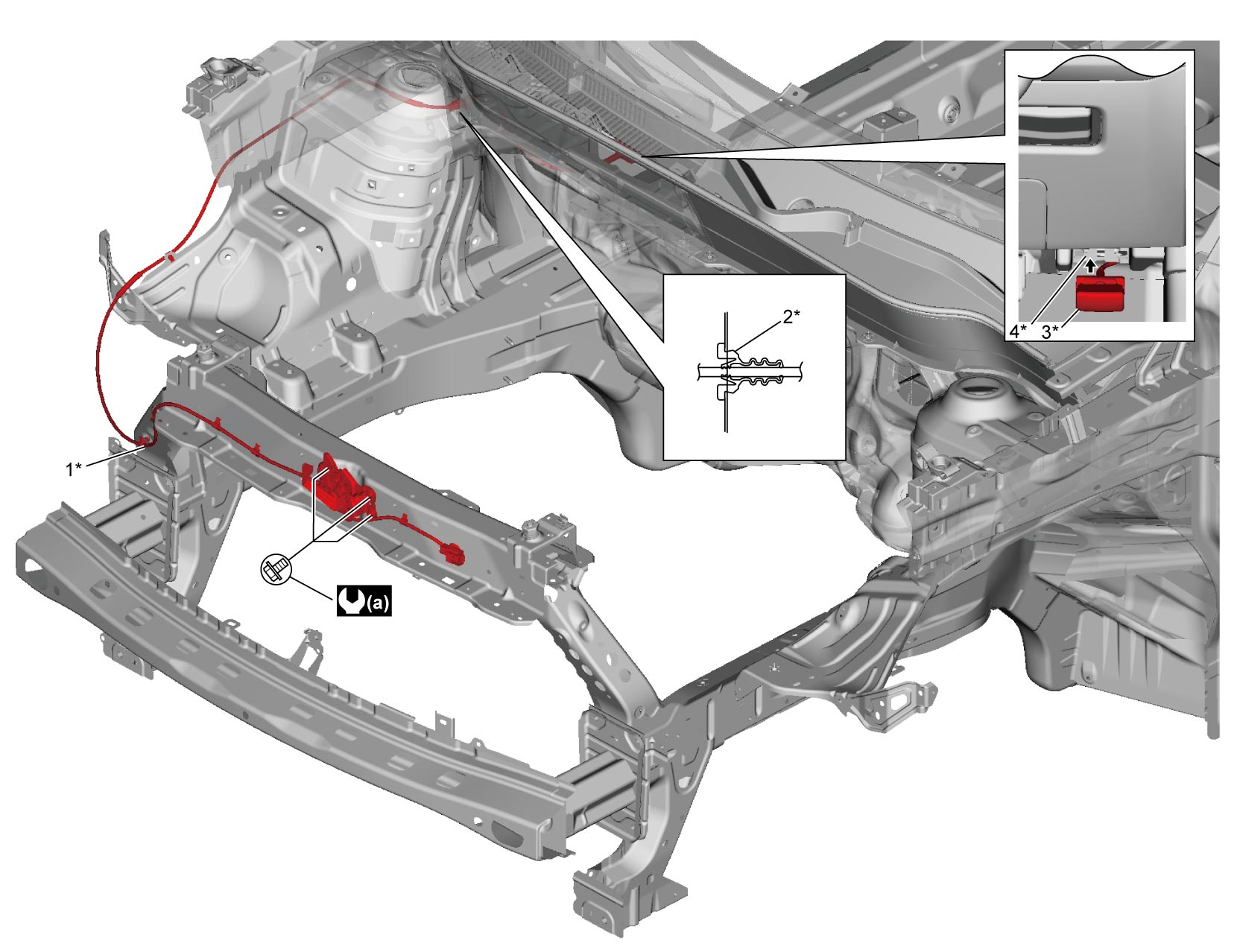

RHD
| 1. | Hood lock release cable | 3. | Hood lock release lever |
 : |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 2. | Grommet | 4. | Instrument panel |

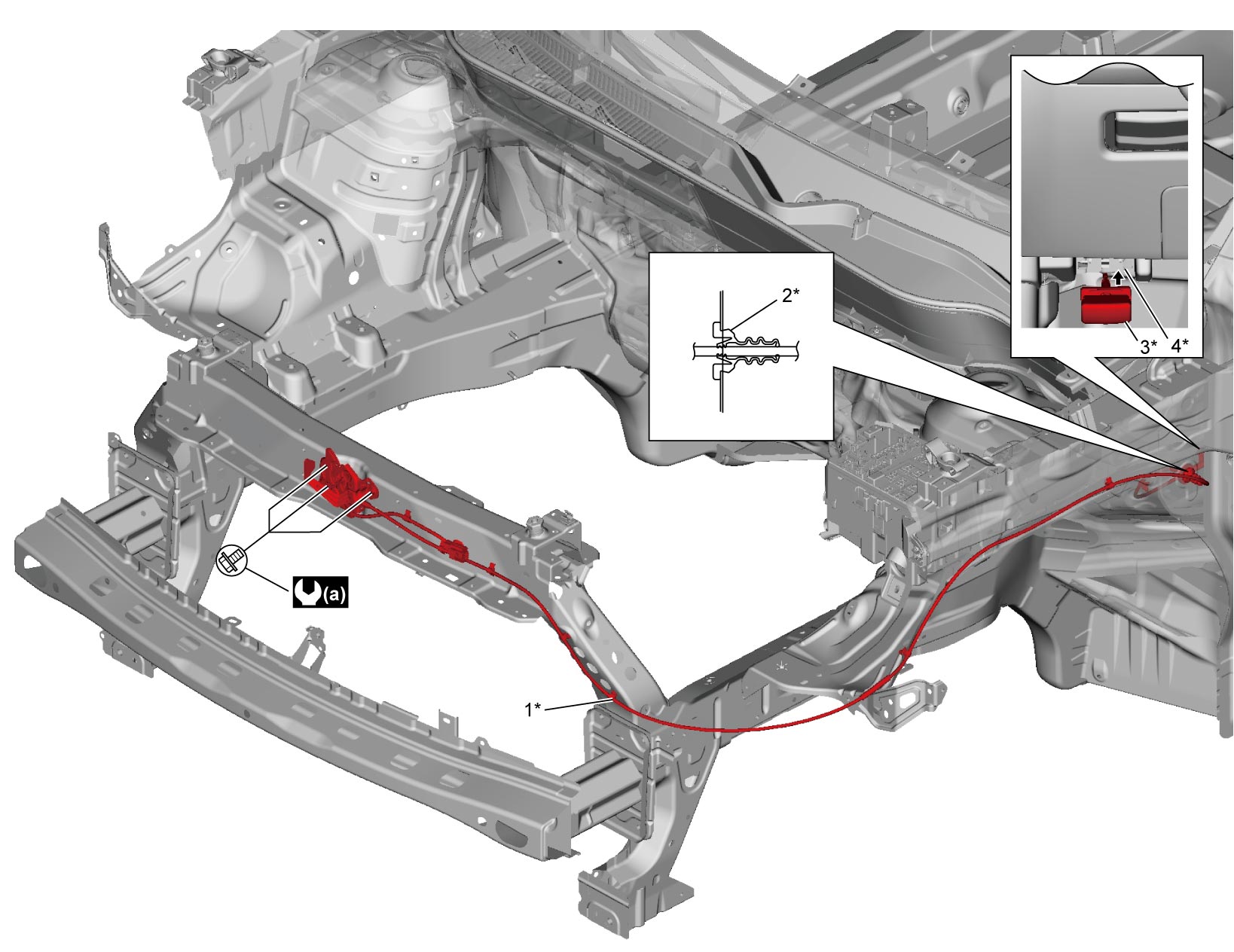

LHD
| 1. | Hood lock release cable | 3. | Hood lock release lever |
: |
10 N·m (1.0 kgf-m, 7.5 lbf-ft) |
| 2. | Grommet | 4. | Instrument panel |
