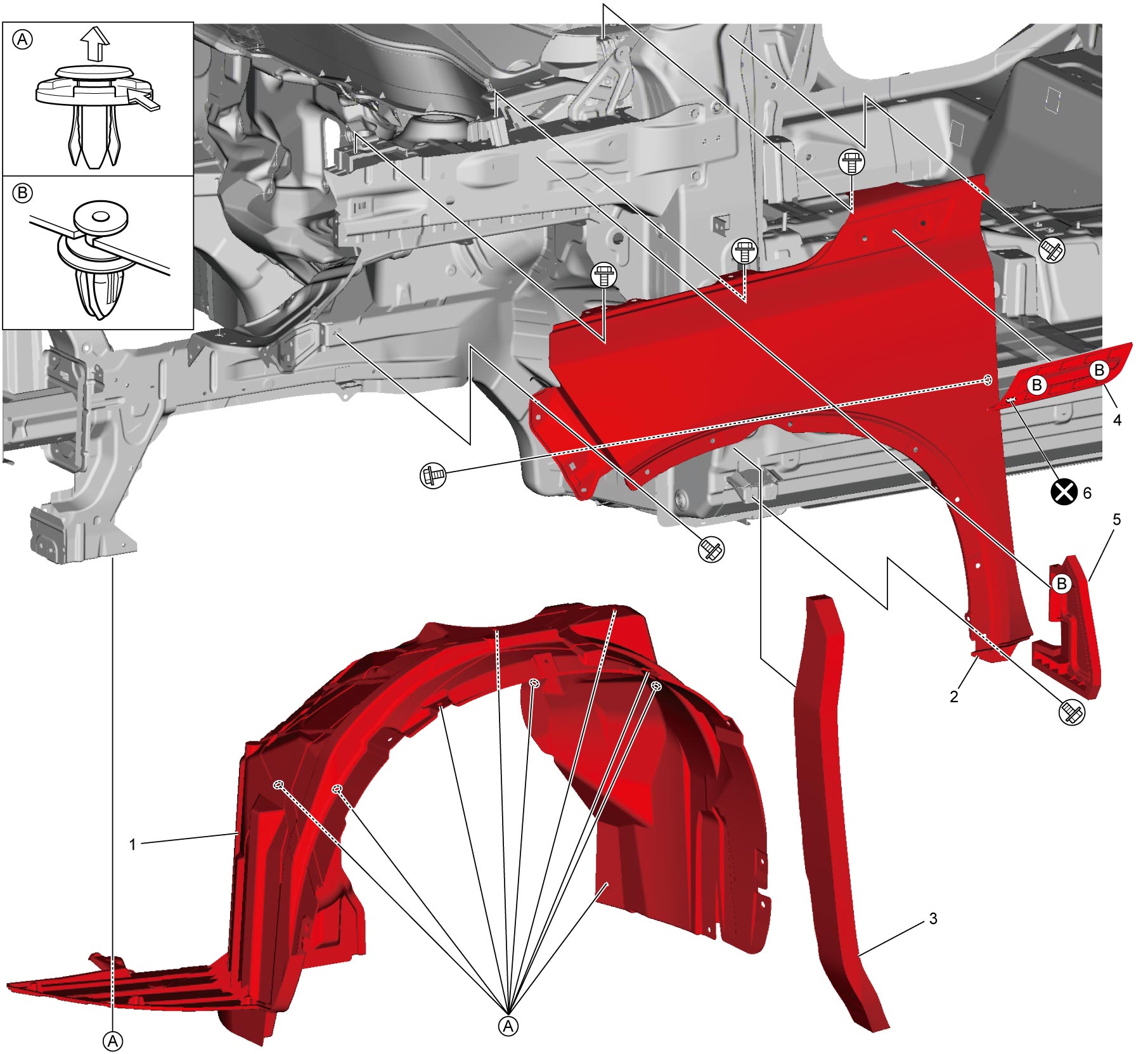

Front Fender Components

Precautions: Precautions for Body, Cab and Accessories · General safety (00)

1.	Front fender lining	4.	Front fender garnish	:	9.0 N·m (0.92 kgf-m, 7.0 lbf-ft)
2.	Front fender	5.	Front fender cover	:	Do not reuse.
3.	Front fender rear pad	6.	Double-stick tape
