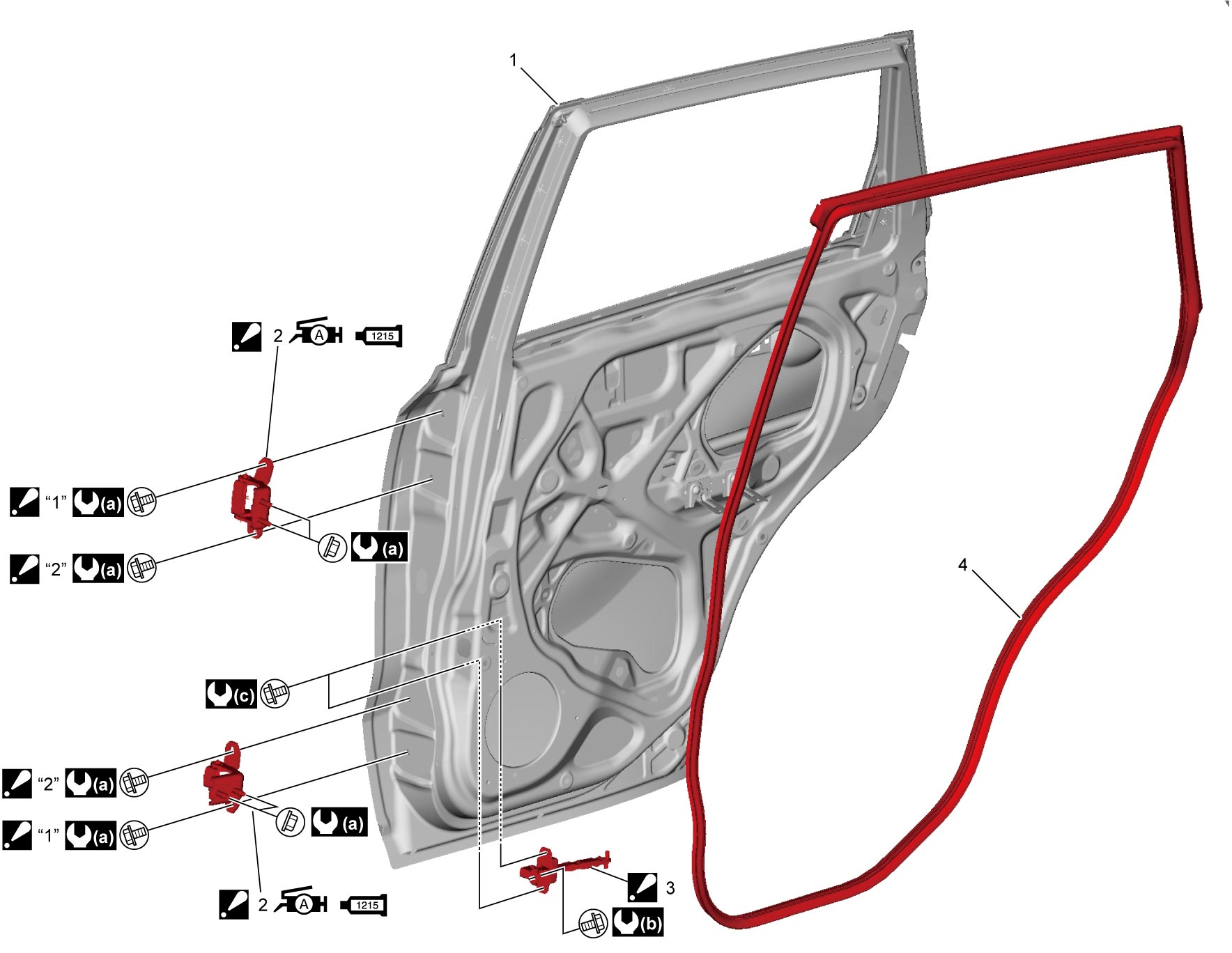

Rear Door Components
Precautions: Precautions for Body, Cab and Accessories · General safety (00)
| 1. | Door panel |
 : |
23 N·m (2.3 kgf-m, 17.0 lbf-ft) |
   2. |
Door hinge : Apply grease 99000-25011 to rotating part. : Apply sealant 99000-31110 to mounting face. : Tighten door hinge bolt (door side) in numerical order (“1” – “2”). |
 : |
21 N·m (2.1 kgf-m, 15.5 lbf-ft) |
|
3. |
Door open stopper : Install in correct direction.
|
 : |
5.5 N·m (0.56 kgf-m, 4.0 lbf-ft) |
| 4. | Rear door opening weather-strip |
