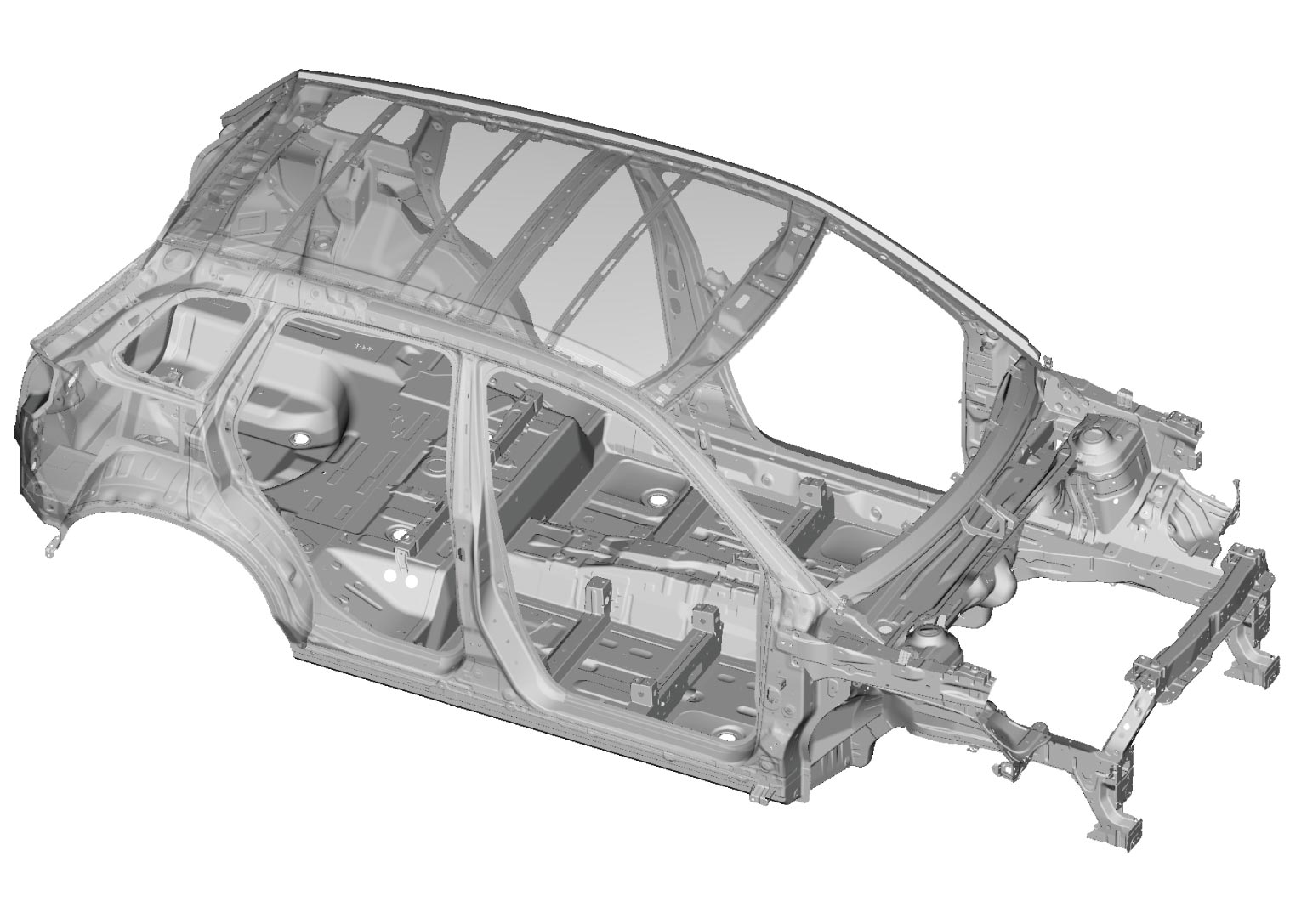

Body Structure Description

Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)

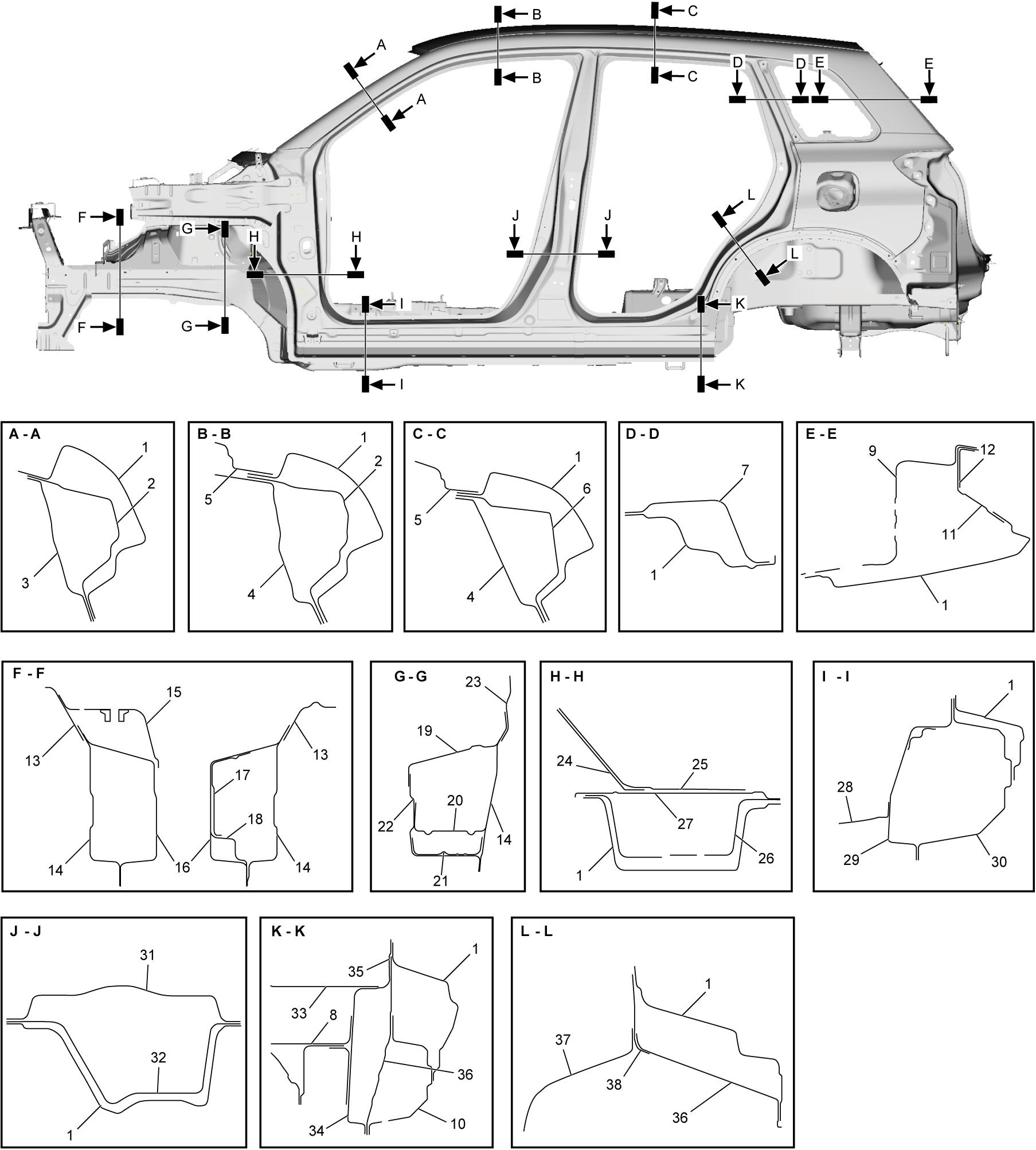

Cross-sections

1.	Side body outer panel	14.	Apron side outer member	27.	Dash side panel
2.	Front pillar upper reinforcement	15.	Engine mount bracket	28.	Main floor pan
3.	Front pillar inner panel	16.	Apron side inner member	29.	Side sill inner panel
4.	Roof side inner rail	17.	Engine mount reinforcement	30.	Side sill front strength
5.	Roof panel	18.	Apron side member reinforcement	31.	Center pillar inner panel
6.	Roof side reinforcement	19.	Apron side rear reinforcement	32.	Rear door hinge reinforcement
7.	Quarter inner front reinforcement	20.	Dash lower reinforcement	33.	Rear floor center panel
8.	Rear floor side front member	21.	Apron side rear lower reinforcement	34.	Rear floor compartment
9.	Quarter inner upper extension	22.	Apron side rear inner reinforcement	35.	Side sill rear panel
10.	Side sill rear strength	23.	Fender apron rear panel	36.	Wheel house outer extension
11.	Side body outer upper extension	24.	Dash panel	37.	Wheel house inner panel
12.	Side body outer extension	25.	Dash panel outside reinforcement	38.	Wheel house outer panel
13.	Fender apron extension	26.	Front door hinge reinforcement
