Front Body Dimensions
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)

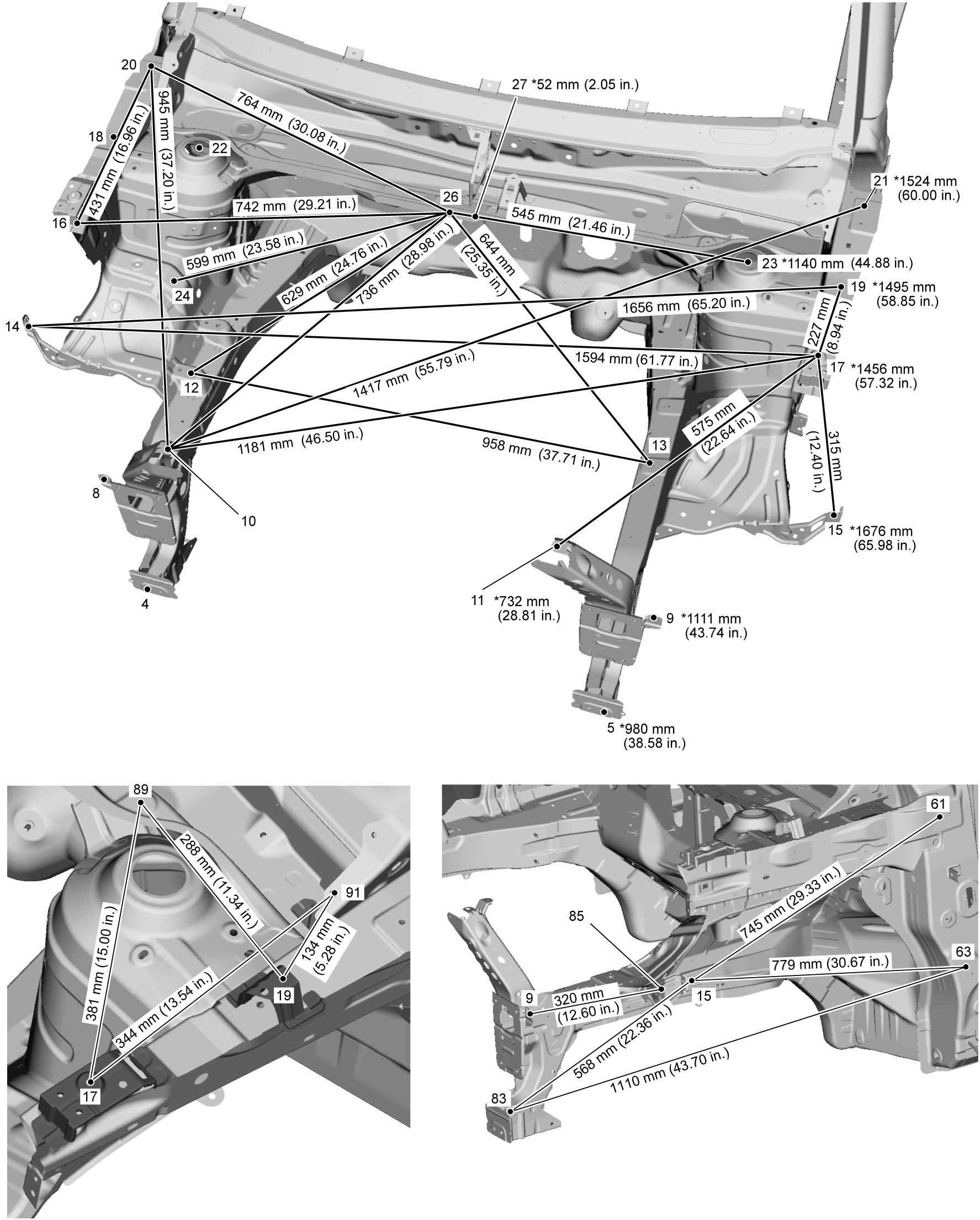

NOTE:
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
| Point | Position | ||
|---|---|---|---|
| 4 | Radiator support member installation hole | R | ø 11 hole center (weld nut M10) |
| 5 | ↑ | L | ↑ |
| 8 | Headlight installation hole | R | ø 7 hole center (weld nut M6) |
| 9 | ↑ | L | ↑ |
| 10 | Radiator support upper bracket installation hole | R | ø 10 hole center |
| 11 | ↑ | L | ↑ |
| 12 | Engine right mounting installation hole (front side) (Point 13 left-right asymmetry) |
R | ø 11 hole center (weld nut M10) |
| 13 | Engine left mounting installation hole (front side) (Point 12 left-right asymmetry) |
L | ø 11 hole center (weld nut M10) |
| 14 | Front fender installation hole | R | ø 8 hole center (weld nut M6) |
| 15 | ↑ | L | ↑ |
| 16 | Front hood cushion installation hole | R | ø 8 hole center |
| 17 | ↑ | L | ↑ |
| 18 | Front fender installation hole | R | ø 8 hole center (weld nut M6) |
| 19 | ↑ | L | ↑ |
| 20 | Hood hinge installation hole (rear side) | R | ø 9 hole center (weld nut M6) |
| 21 | ↑ | L | ↑ |
| 22 | Front strut installation hole | R | ø 53 hole center |
| 23 | ↑ | L | ↑ |
| 24 | Engine right mounting installation hole | R | ø 14 hole center (weld nut M10) |
| 26 | Cowl top garnish installation hole | R | ø 8 hole center |
| 27 | ↑ | L | ↑ |
| 82 | Apron side No.2 extension jig hole | R | ø 8 hole center |
| 83 | Apron side No.1 extension jig hole | L | ø 8 hole center |
| 84 | Front fender bracket jig hole | R | ø 7 hole center |
| 85 | ↑ | L | ↑ |
| 88 | Wiper link installation hole | R | ø 7 hole center (weld nut M6) |
| 89 | ↑ | L | ↑ |
| 90 | Cowl top garnish installation hole | R | ø 8 hole center (weld nut M6) |
| 91 | ↑ | L | ↑ |
