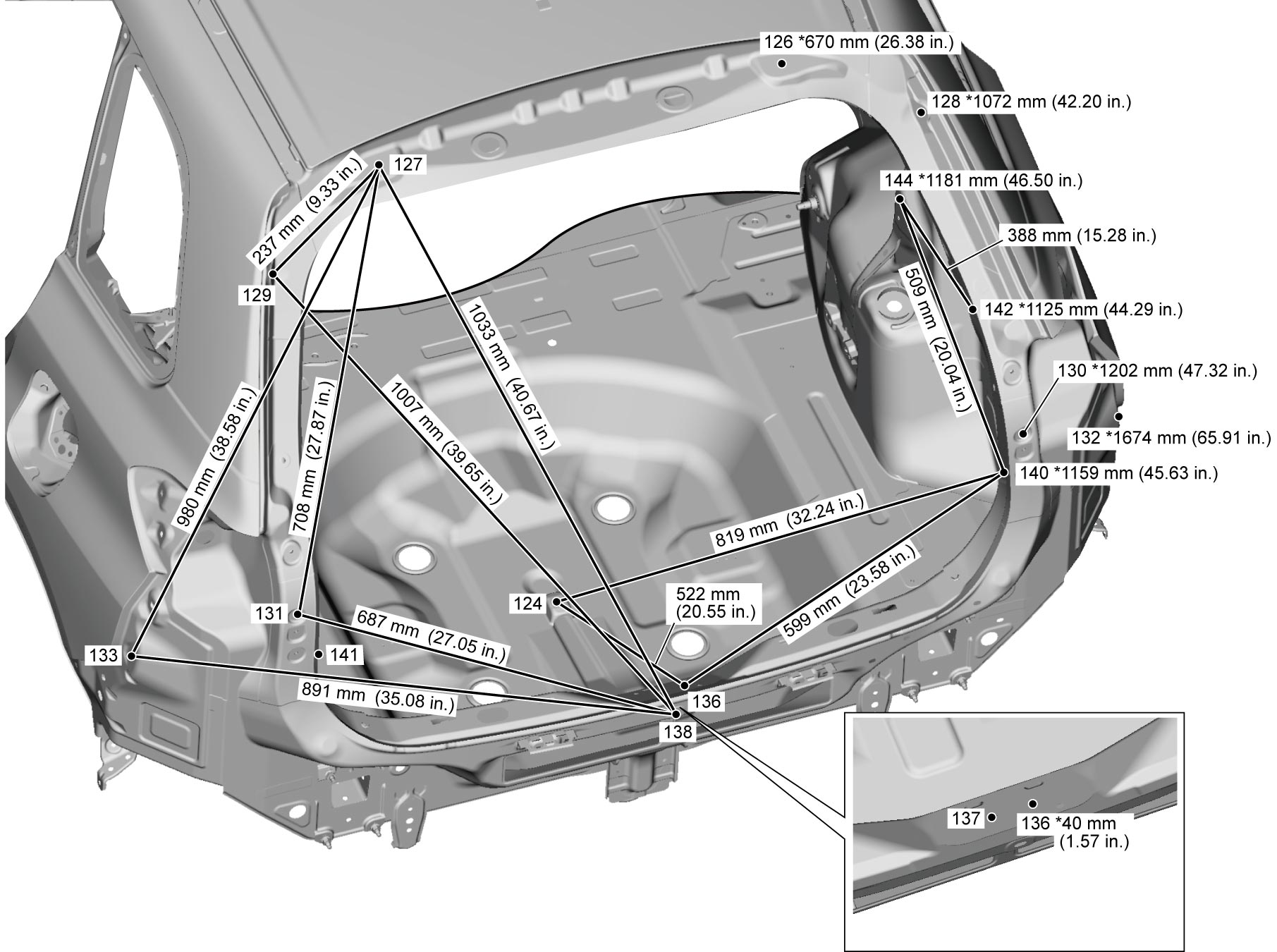

Rear End Door Dimensions
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
•Dimension with asterisk (*) shows distance to the same point on opposite side.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
•In principle, body dimensions in the figure below are symmetrical. Adopt the dimension for the opposite side if the dimension is not mentioned in the figure below.
•The number with “ø” is circle diameter and measurement unit is “mm”.
| Point | Position | ||
|---|---|---|---|
| 124 | Spare tire holder installation hole | R | ø 10 hole center |
| 126 | Back door hinge installation hole | R | ø 8.2 hole center |
| 127 | ↑ | L | 8.2 x 10 mm hole center |
| 128 | Rear end door balancer installation hole (lower) | R | ø 11 hole center (weld nut M8) |
| 129 | ↑ | L | ↑ |
| 130 | Rear combination light installation hole | R | ø 10 hole center (weld nut M6) |
| 131 | ↑ | L | ↑ |
| 132 | Rear combination light installation hole | R | ø 17 hole center |
| 133 | ↑ | L | ↑ |
| 136 | Rear end door striker installation hole | R |
 14 mm hole center (weld nut M8) |
| 137 | ↑ | L | ↑ |
| 138 | Rear bumper harness installation hole | — | 7 x 12 mm hole center |
| 140 | Quarter inner lower trim installation hole (lower) | R | ø 8.5 |
| 141 | ↑ | L | ↑ |
| 142 | Quarter inner lower trim installation hole (upper) | R | ↑ |
| 143 | ↑ | L | ↑ |
| 144 | Rear seat striker installation hole (rear) | R | ø 12 hole center (weld nut M8) |
| 145 | ↑ | L | ↑ |
