Front Suspension Frame Dimensions
Precautions: Precautions for Body Structure · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:
The number with “ø” is circle diameter and measurement unit is “mm”.

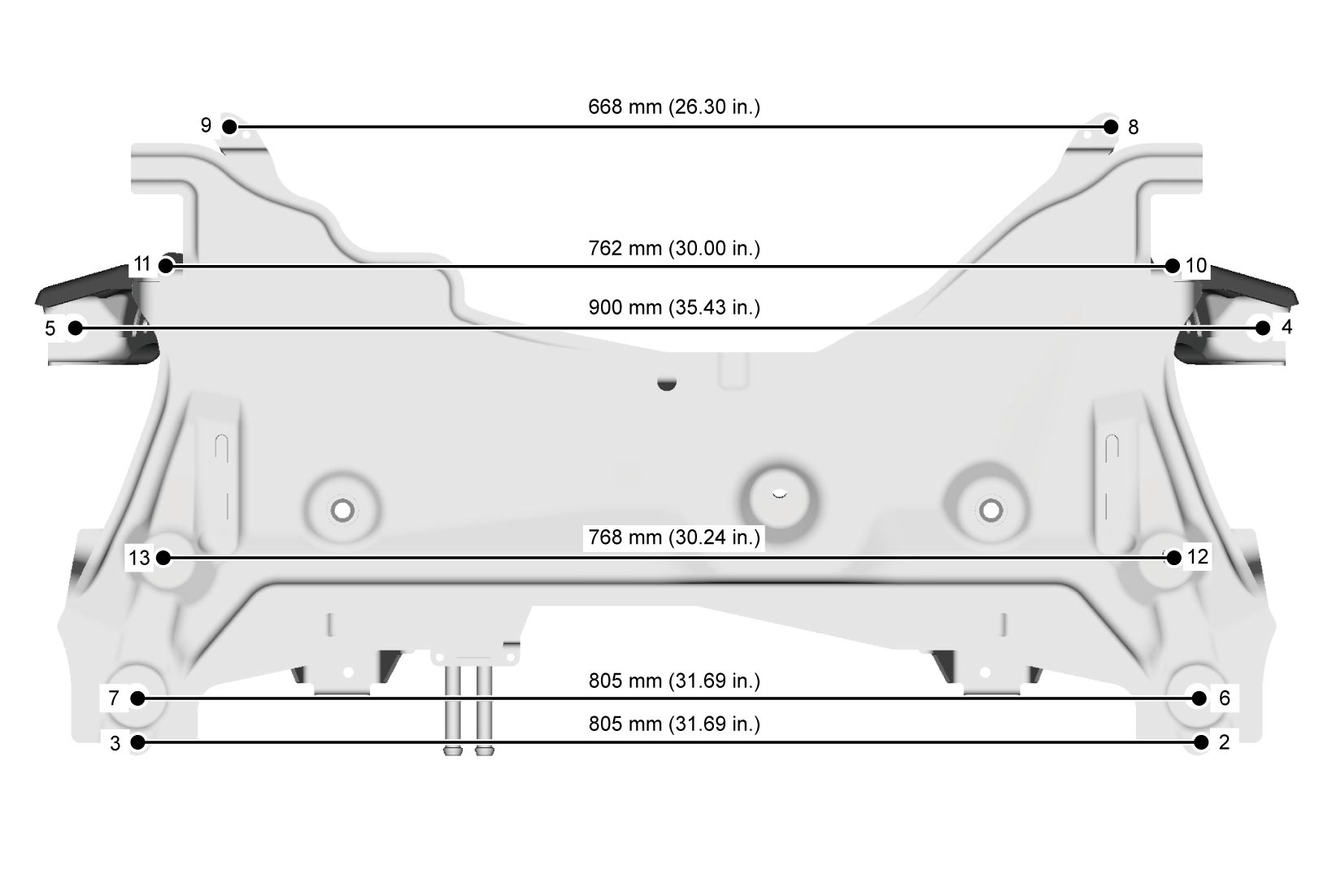

Top View

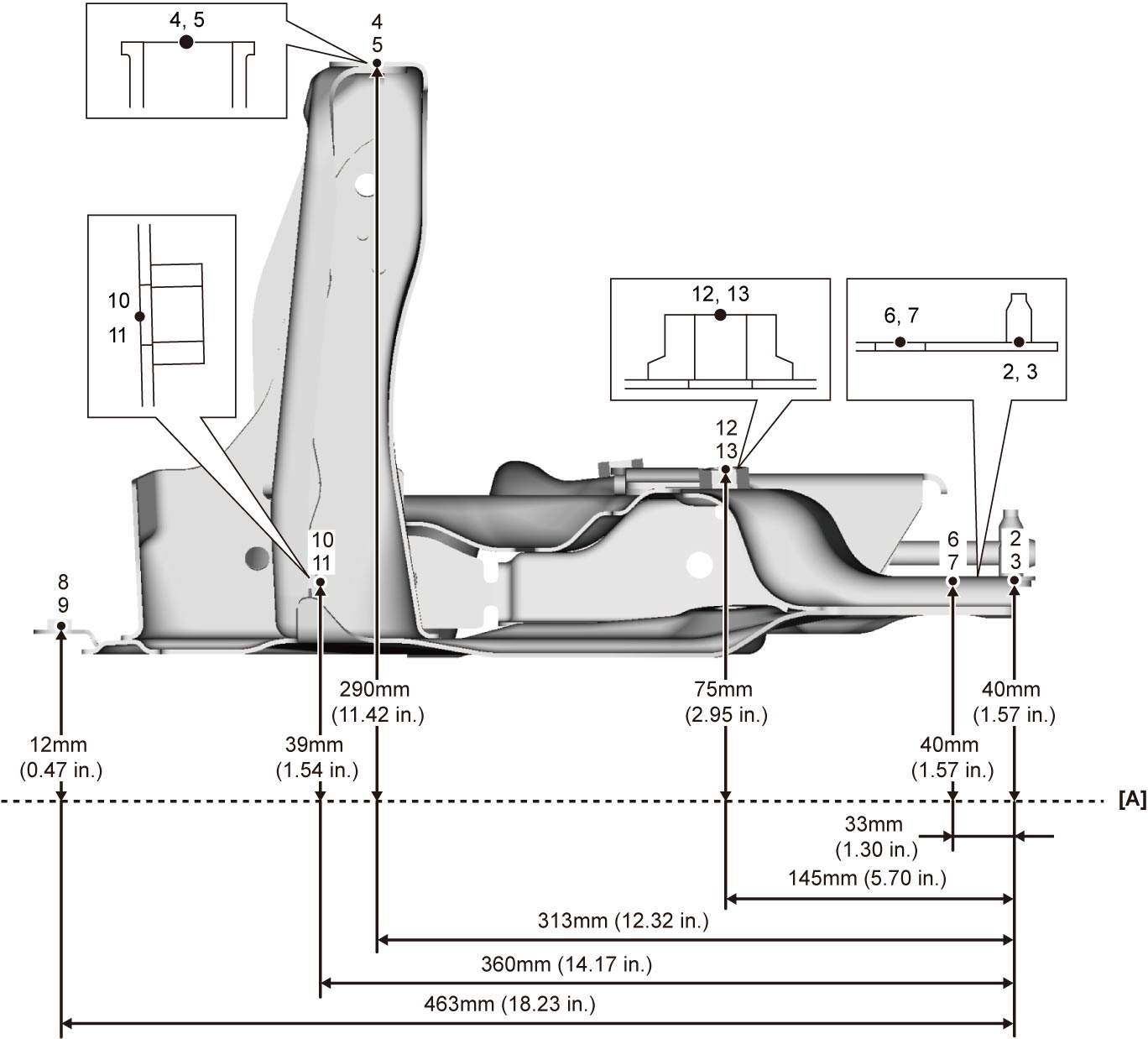

Side View
| [A]: | Imaginary datum line |
| Point | Position | ||
|---|---|---|---|
| 2 | Front suspension frame locating stud | R | ø 12 stud bottom end center |
| 3 | ↑ | L | ↑ |
| 4 | Front suspension frame installation hole | R | ø 22 hole center |
| 5 | ↑ | L | ↑ |
| 6 | Front suspension frame installation hole | R | ø 20 hole center |
| 7 | ↑ | L | ↑ |
| 8 | Engine undercover bracket | R | ø 6 hole center |
| 9 | ↑ | L | ↑ |
| 10 | Suspension arm installation hole | R | Weld nut M14 |
| 11 | ↑ | L | ↑ |
| 12 | ↑ | R | ↑ |
| 13 | ↑ | L | ↑ |
