Anti-Corrosion Compound Application Area
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

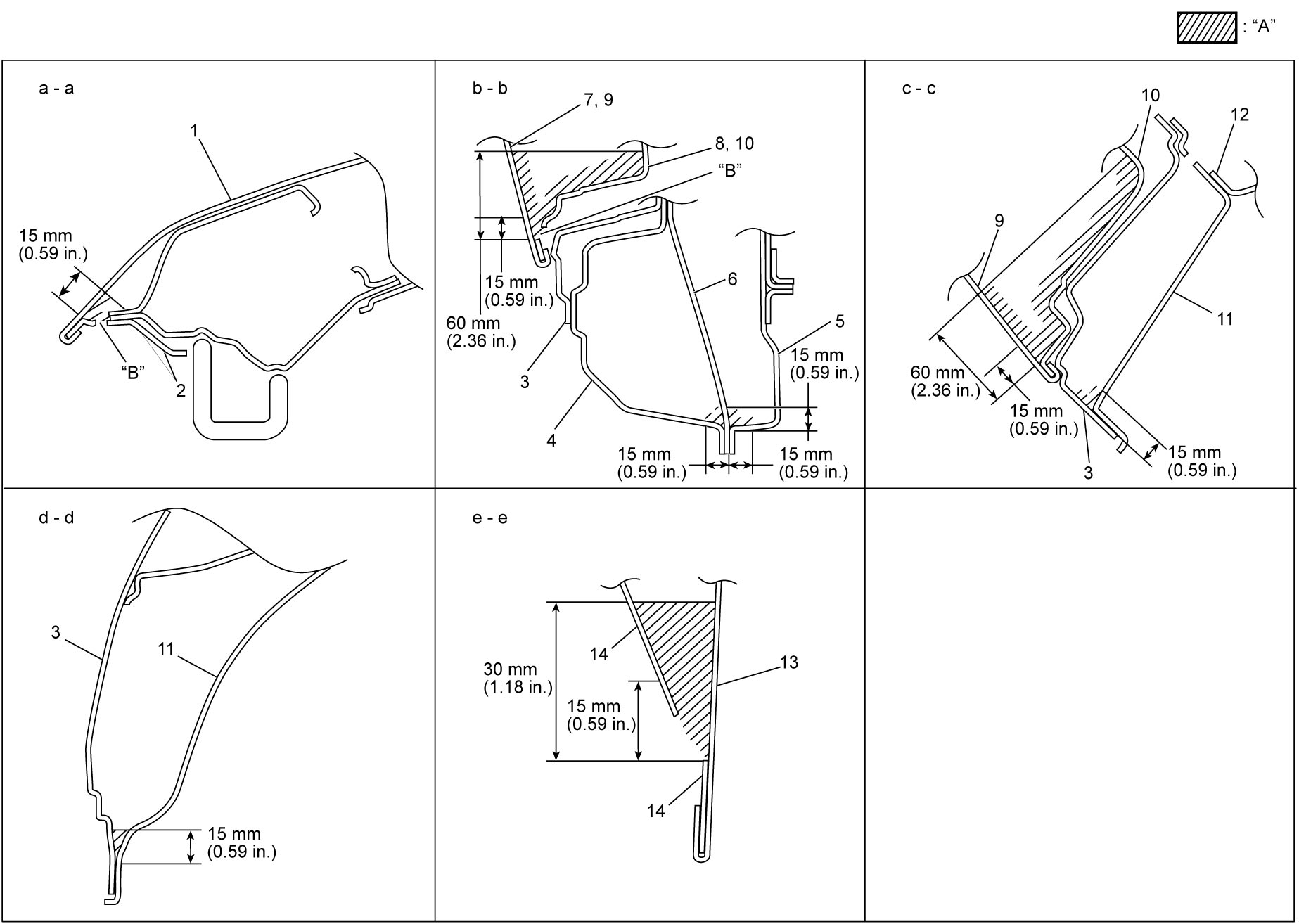

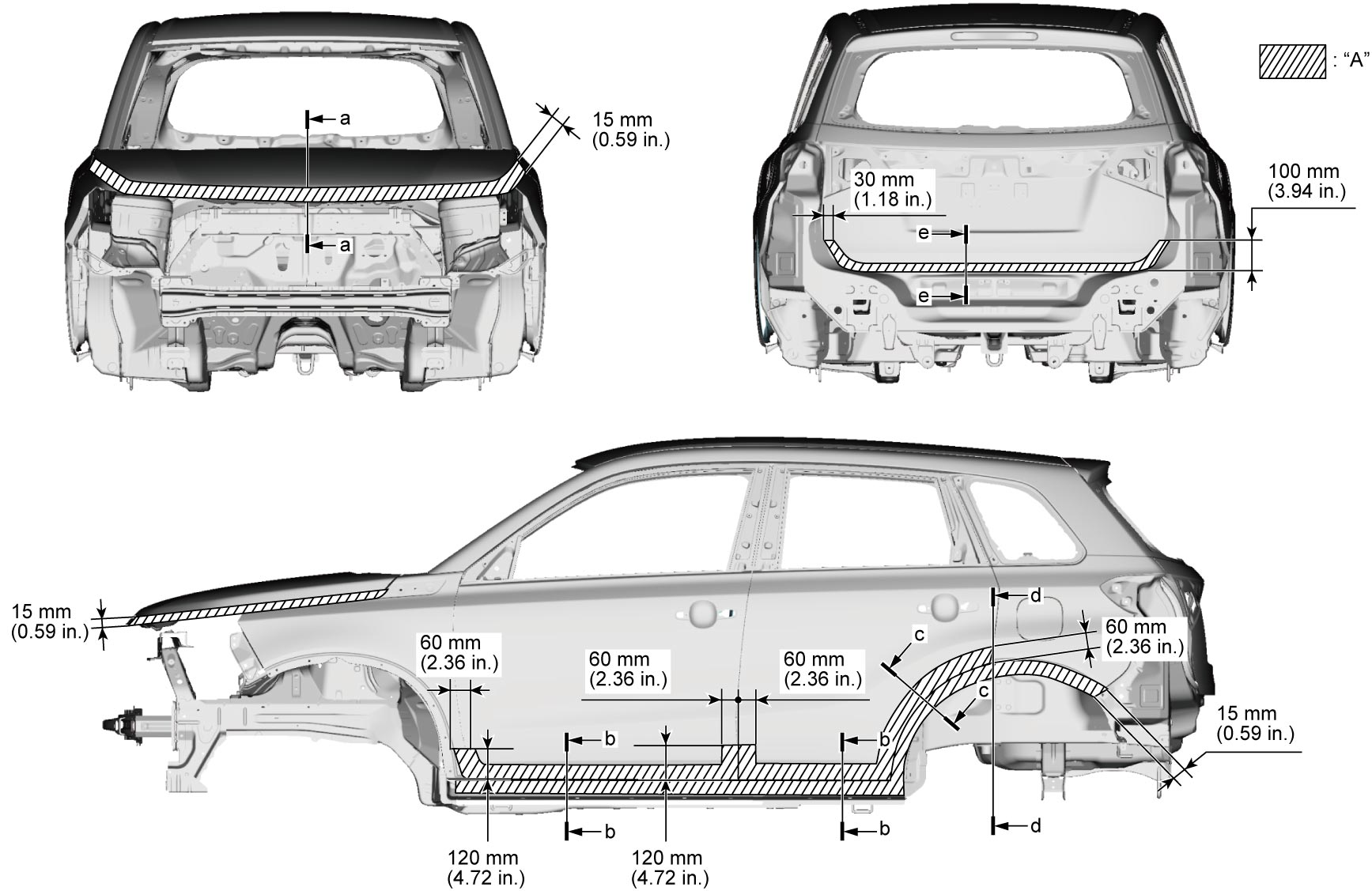

Apply anti-corrosion compound referring to the following figures.
| [A]: | Dash panel (View: [A]) | “A”: | Apply rustproof wax (hot wax). |
| “A”: | Apply rustproof wax (hot wax). | 5. | Rear floor compartment | 11. | Wheel house outer panel |
| “B”: | Do not fill drain holes with rustproof wax. | 6. | Side sill rear panel | 12. | Wheel house inner panel |
| 1. | Front hood outer panel | 7. | Front door outer panel | 13. | Rear end door outer panel |
| 2. | Front hood inner panel | 8. | Front door inner panel | 14. | Rear end door inner panel |
| 3. | Side body outer panel | 9. | Rear door outer panel | ||
| 4. | Side sill strength | 10. | Rear door inner panel |
