Undercoating Application Areas
Precautions: Precautions for Body, Cab and Accessories · General safety (00)

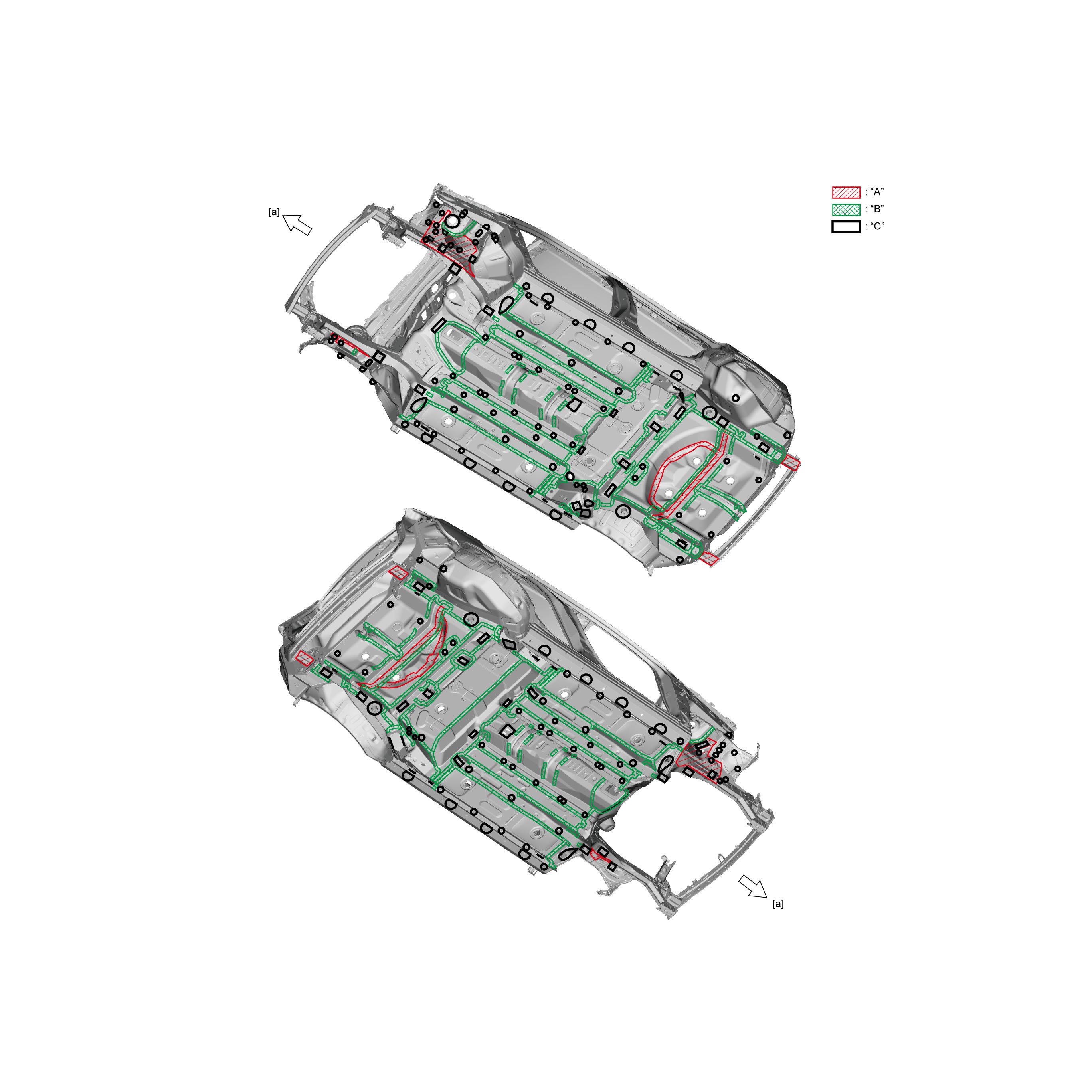

Apply undercoating referring to the following figures.
2WD
4WD
| [a]: | Vehicle forward | “B”: | Apply stone-guard coating. |
| “A”: | Apply undercoating. | “C”: | Do not apply undercoating and stone-guard coating. |
