Audio System Component Location
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)
NOTE:

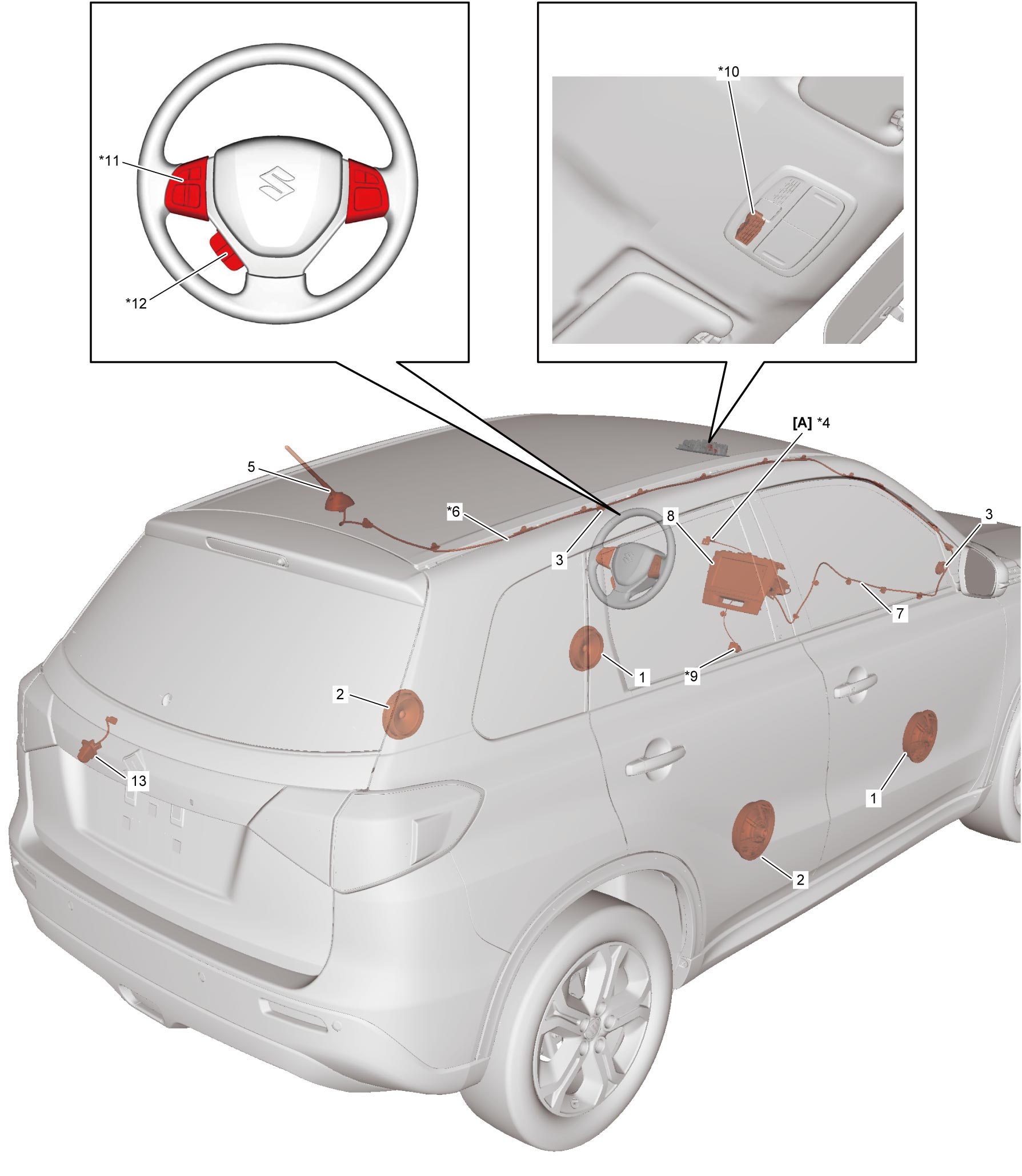

The figure shows LHD. For RHD, parts with asterisk (*) are installed at the opposite side.
| [A]: | For navigation unit | 5. | Radio antenna | 10. | Driver side microphone (hands-free microphone) (if equipped) |
| 1. | Front speaker | 6. | Radio antenna feeder cable (roof) | 11. | Steering switch (audio control switch) (if equipped) |
| 2. | Rear speaker (if equipped) | 7. | Radio antenna feeder cable (instrument panel) | 12. | Steering switch (hands-free switch) (if equipped) |
| 3. | Tweeter (if equipped) | 8. | Audio / navigation unit (if equipped) | 13. | Rearview camera |
| 4. | GPS antenna | 9. | USB socket (if equipped) |
