Tweeter Removal and Installation

Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

Removal

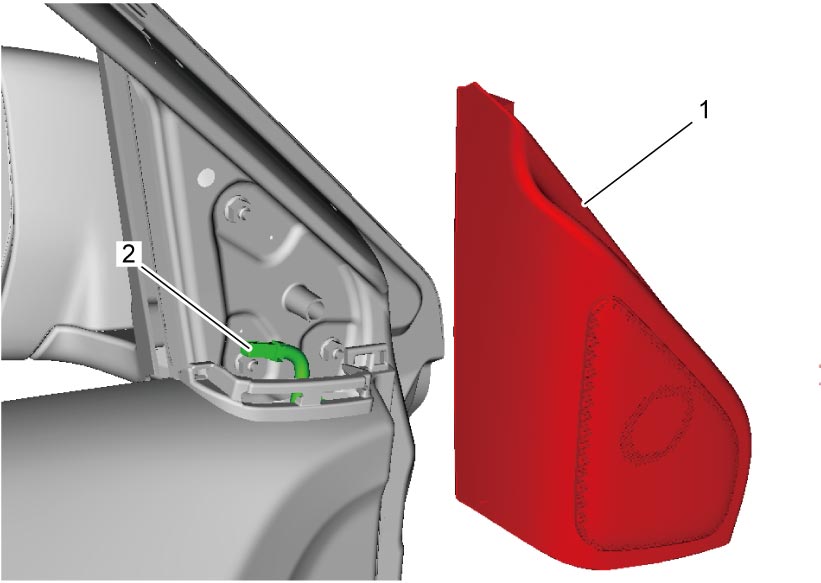

1)Remove tweeter cover (1).

2)Disconnect tweeter connector (2).

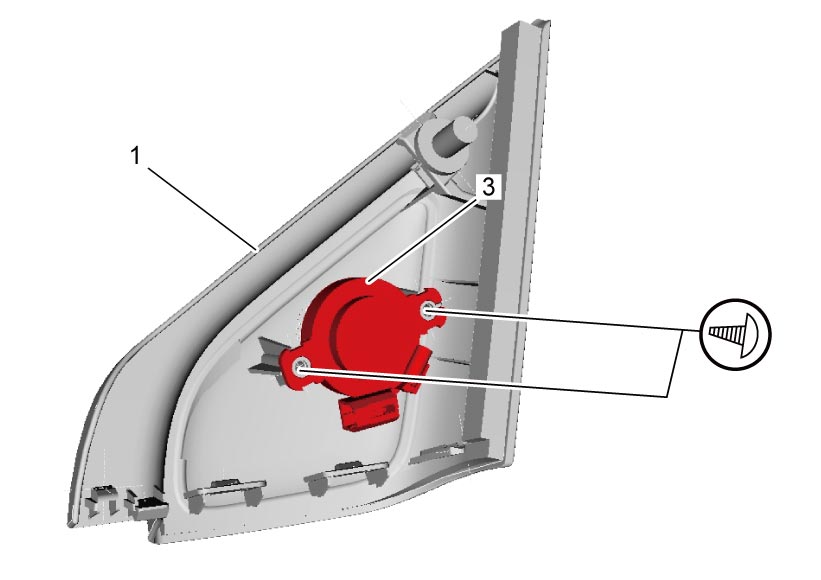

3)Remove 2 screws and remove tweeter (3).

Installation

Reverse removal procedure.
