Front Speaker and Rear Speaker Removal and Installation

Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

Removal

1)Remove door trim.

•Front:
•Rear:

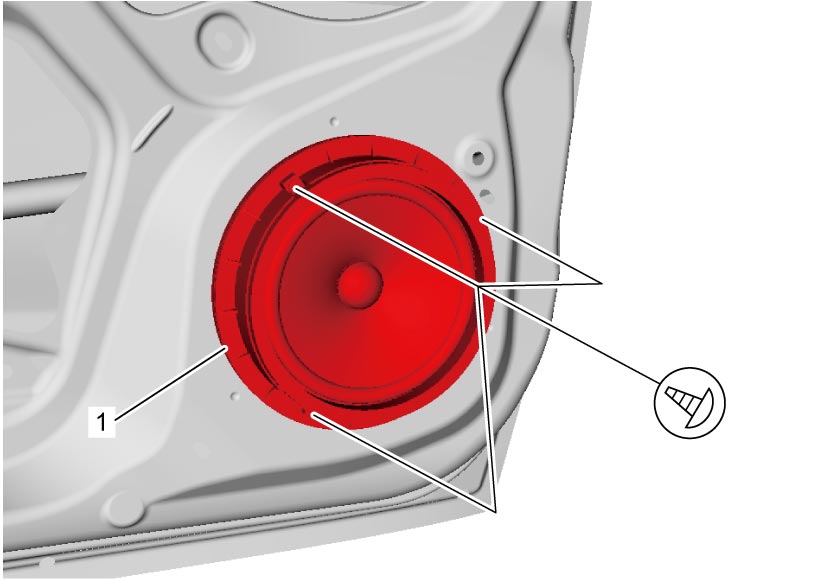

2)Remove 3 screws and remove front or rear speaker (1).

3)Disconnect speaker connector.

Installation

Reverse removal procedure.
