Radio Antenna Feeder Cable Inspection
Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)
Radio Antenna Feeder Cable (Instrument Panel)
Disconnect radio antenna feeder cable (instrument panel) and check continuity as shown in figure. If check result is not as specified, replace radio antenna feeder cable (instrument panel).

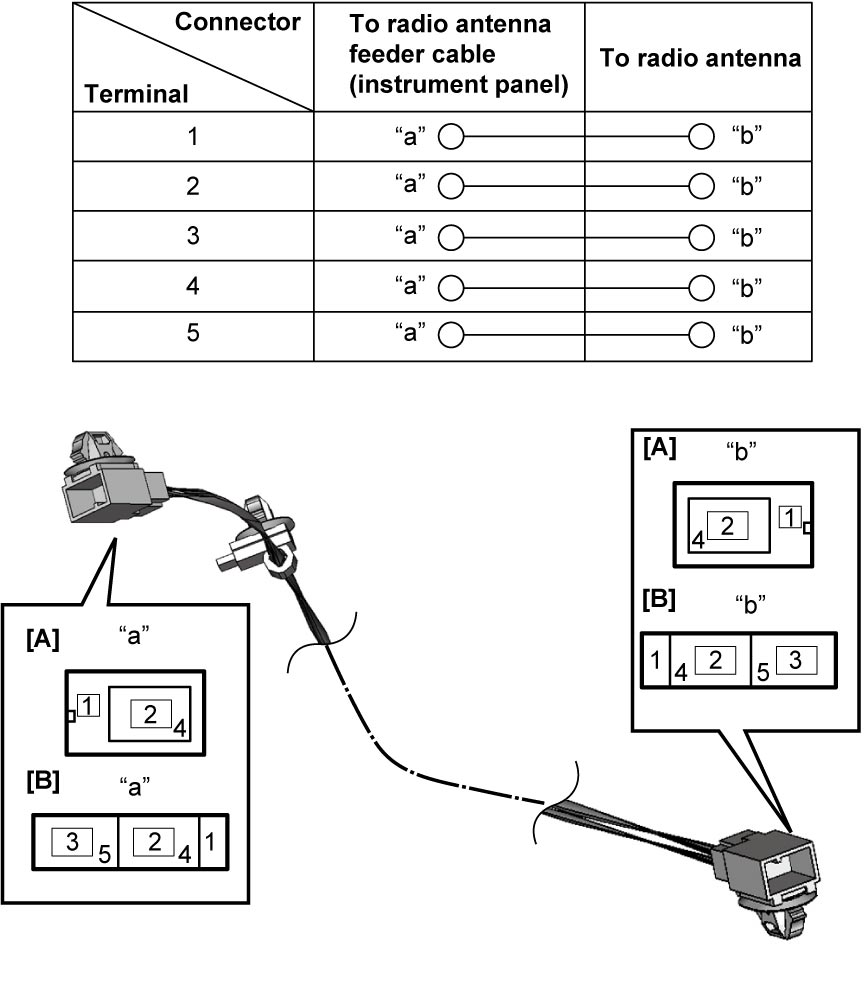

Radio antenna feeder cable (instrument panel) continuity
| [A]: | Without DAB terminal | [B]: | With DAB terminal |
Radio Antenna Feeder Cable (Roof)
Disconnect radio antenna feeder cable (roof) and check continuity as shown in figure. If check result is not as specified, replace radio antenna feeder cable (roof).

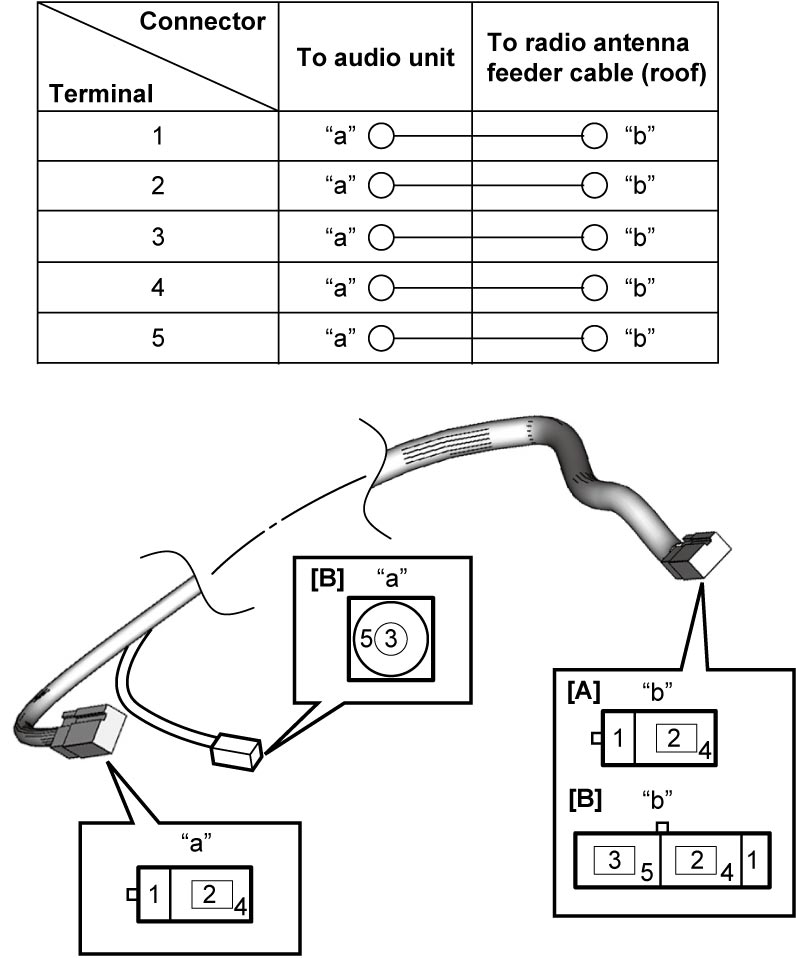

Radio antenna feeder cable (roof) continuity
| [A]: | Without DAB terminal | [B]: | With DAB terminal |
