Steering Switch (Audio Control Switch and Hands-Free Switch) Removal and Installation (If Equipped)

Precautions: Precautions for Audio Visual / Navigation · Precautions for Body, Cab and Accessories · General safety (00)

Removal

1)Remove steering wheel referring to Steering Wheel Removal and Installation.

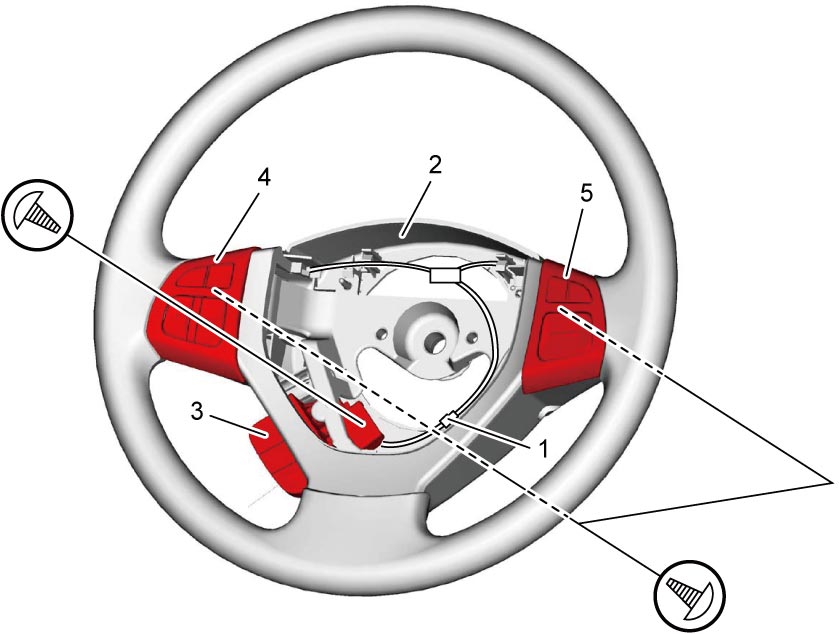

2)Remove screws and disconnect connector (1).

3)Remove steering wheel cover (2) and hands-free switch (3) (if equipped) from steering wheel.

4)Remove audio control switch (4) and cruise control switch (5) (if equipped) from steering wheel.

Installation

Reference: Steering Switch (Audio Control Switch and Hands-Free Switch) Inspection (If Equipped)

Reverse removal procedure.
