Control Relay Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)

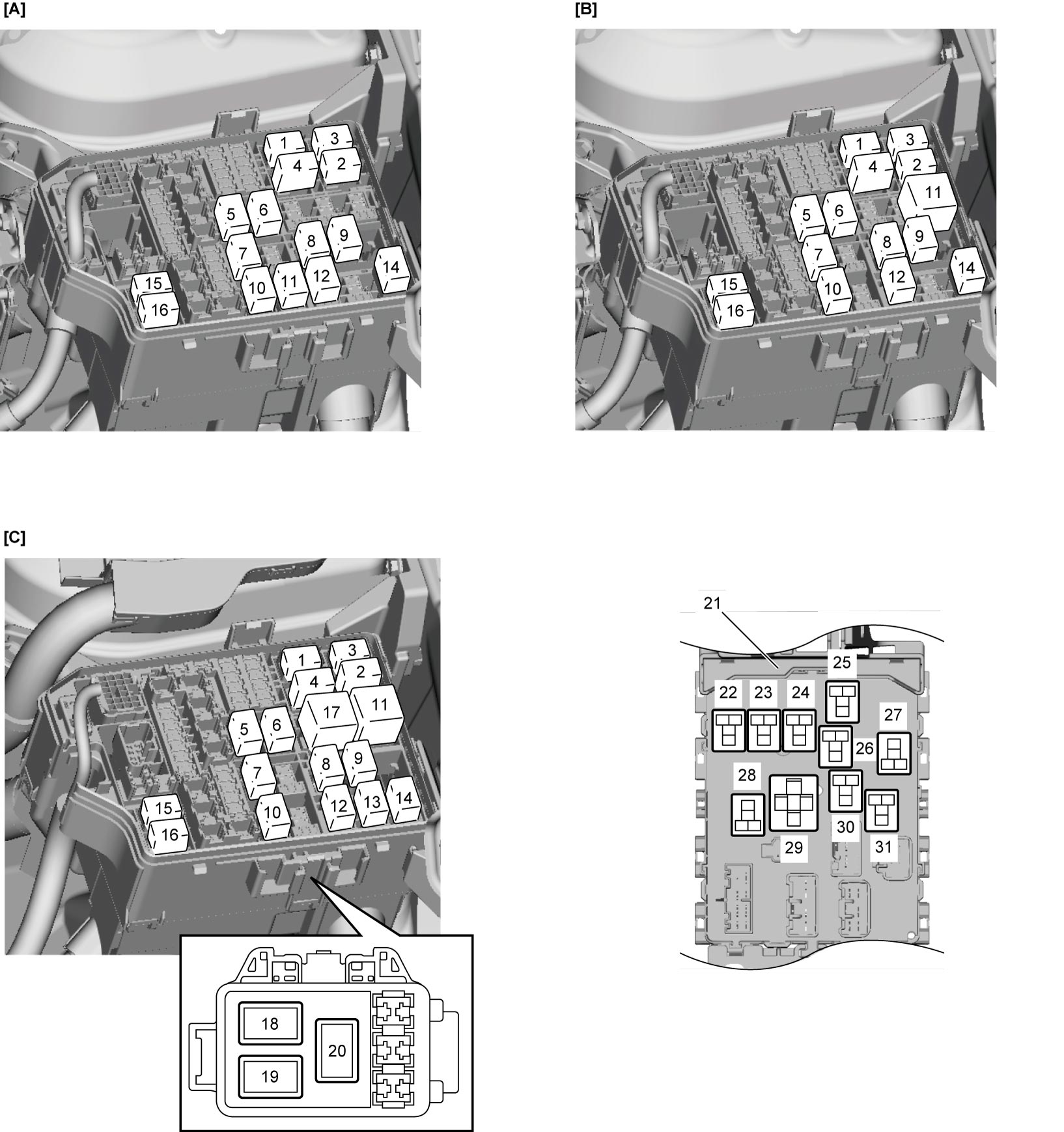

| [A]: | M16A model | 10. | Starting motor control relay | 22. | DRL relay |
| [B]: | K14C model | 11. | Main relay | 23. | Rear fog light relay |
| [C]: | D16AA model | 12. | Back up light relay | 24. | ACC relay |
| 1. | Radiator cooling fan relay No.1 | 13. | ST3 relay | 25. | Tail light relay |
| 2. | Radiator cooling fan relay No.2 | 14. | ST2 relay | 26. | Horn relay |
| 3. | Radiator cooling fan relay No.3 | 15. | Windshield wiper relay | 27. | Blower motor relay |
| 4. | Brake light relay | 16. | Windshield wiper HI/LO relay | 28. | IG1 relay |
| 5. | A/C compressor relay | 17. | Fuel heater relay | 29. | IG2 relay |
| 6. | Fuel pump relay | 18. | Additional heater relay No.1 | 30. | Rear wiper relay |
| 7. | Front fog light relay | 19. | Additional heater relay No.2 | 31. | Rear defogger relay |
| 8. | Headlight HI relay | 20. | Additional heater relay No.3 | ||
| 9. | Headlight LO relay | 21. | J/B |
