BCM and Related System Component Location
Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)
NOTE:
The figure shows LHD. For RHD, parts with (*) are installed at the opposite side.

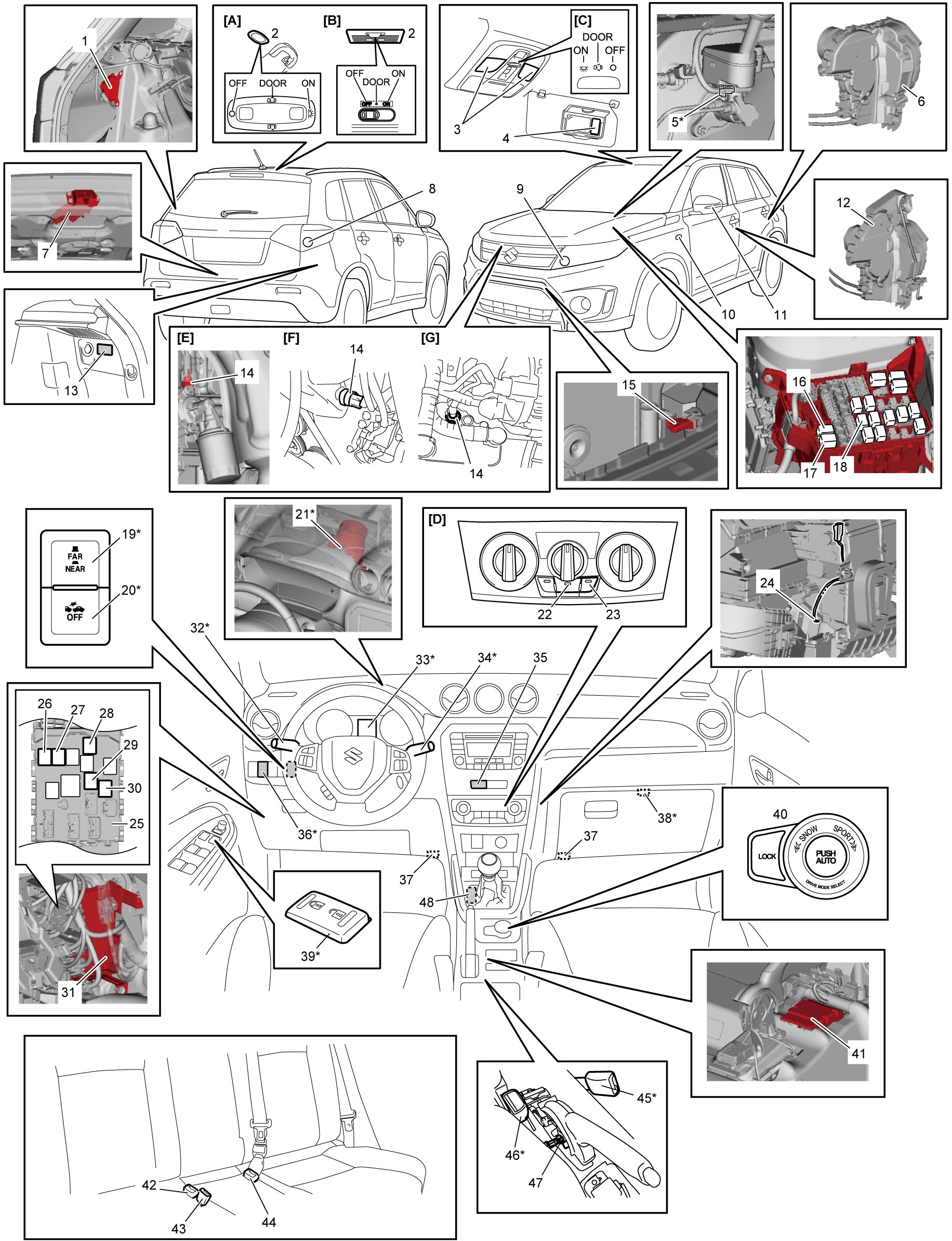

| [A]: | Sun roof model | 13. | Luggage compartment light | 32. | Lighting and turn signal switch |
| [B]: | Non-sun roof model | 14. | Oil pressure switch | 33. | Information display |
| [C]: | Overhead console model | 15. | Outside air temperature sensor | 34. | Wiper and washer switch |
| [D]: | Other than auto A/C model | 16. | Windshield wiper relay | 35. | Hazard warning switch |
| [E]: | M16A model | 17. | Windshield wiper HI/LO relay | 36. | Front fog light switch |
| [F]: | K14C model | 18. | Front fog light relay | 37. | Foot light |
| [G]: | D16AA model | 19. | FAR/NEAR setting switch | 38. | Glove box light |
| 1. | 4WD control module | 20. | RBS OFF switch | 39. | Power door lock switch |
| 2. | Rear dome light | 21. | P/S control module | 40. | Driving mode switch |
| 3. | Spot light | 22. | A/C switch | 41. | SDM |
| 4. | Vanity light | 23. | Rear defogger switch | 42. | Rear right seat belt buckle switch |
| 5. | Brake fluid level switch | 24. | Evaporator temperature sensor | 43. | Rear center seat belt buckle switch |
| 6. | Rear door lock actuator | 25. | J/B | 44. | Rear left seat belt buckle switch |
| 7. | Rear end door opener actuator | 26. | DRL relay | 45. | Driver seat belt buckle switch |
| 8. | Rear turn signal light | 27. | Rear fog light relay | 46. | Passenger seat belt buckle switch |
| 9. | Front turn signal light | 28. | Tail light relay | 47. | Parking brake switch |
| 10. | Side turn signal light | 29. | Rear wiper relay | 48. | Shift lock solenoid (A/T model / twin clutch system model) |
| 11. | Door mirror turn signal light | 30. | Rear defogger relay | ||
| 12. | Front door lock actuator | 31. | BCM |
