Outside Air Temperature Sensor Inspection

Measure resistance of outside air temperature sensor using ohmmeter.

If check result is not as specified, replace outside air temperature sensor.

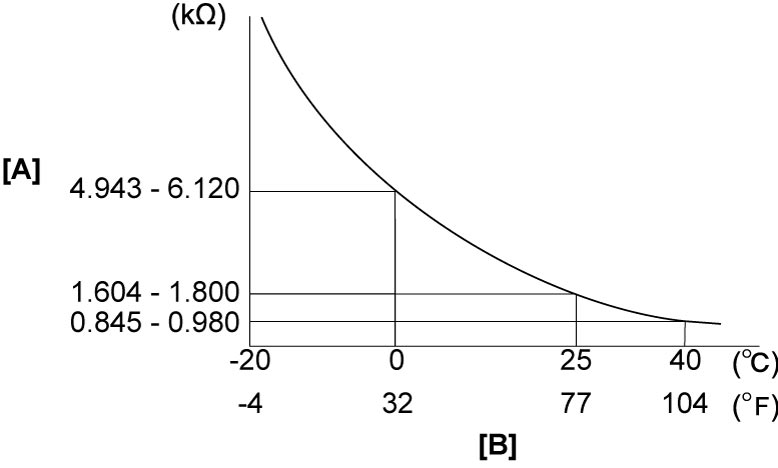

Outside air temperature sensor resistance

0 °C (32 °F): 4.943 – 6.120 kΩ

25 °C (77 °F): 1.604 – 1.800 kΩ

40 °C (104 °F): 0.845 – 0.980 kΩ

[A]:

Resistance

[B]:

Temperature
