Outside Air Temperature Sensor Removal and Installation

Precautions: Precautions for Diagnosing Trouble · Precautions for Control Systems · General safety (00)

Removal
1)Disconnect negative (–) cable at battery.
2)Remove front bumper. icon

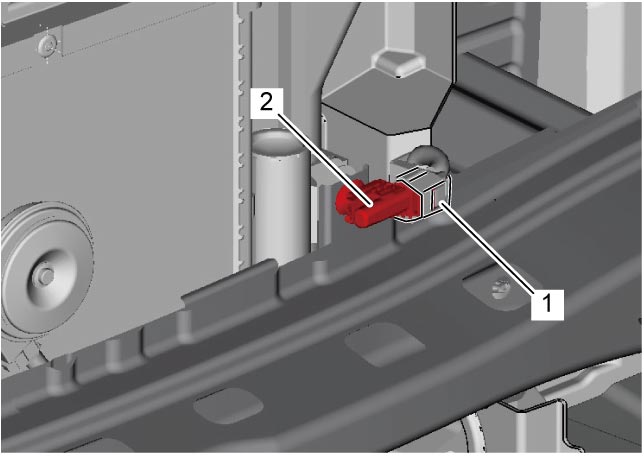

3)Disconnect connector (1) from outside air temperature sensor.
4)Remove outside air temperature sensor (2) from front bumper member.
Installation
Reverse removal procedure.
