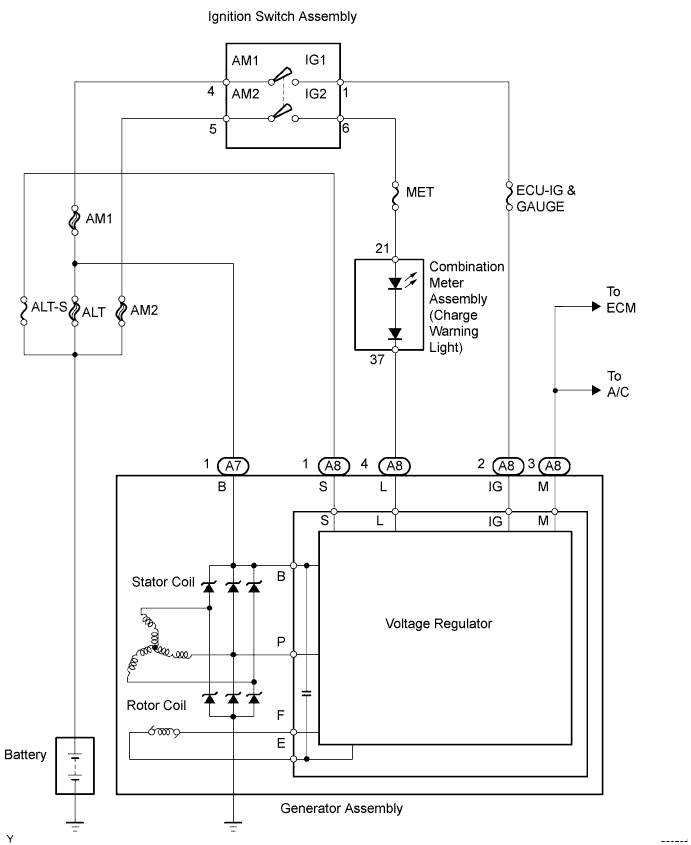

CHARGING SYSTEM > SYSTEM DIAGRAM

for Preparation Click here


The charging system uses the voltage regulator to regulate electricity that is generated by the rotations of the rotor coil. The electricity is then stored in the battery.

G039268E01
