Home › ENGINE › 1TR-FE EMISSION CONTROL › VENTILATION VALVE

VENTILATION VALVE > REMOVAL

for Preparation Click here



1. REMOVE VENTILATION VALVE SUB-ASSEMBLY

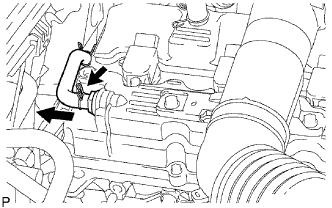

    A099685E01

  1. Loosen the hose clamp and disconnect the ventilation hose from the valve.

  1. Remove the valve.
