HOOK-REAR TOW
REMOVAL

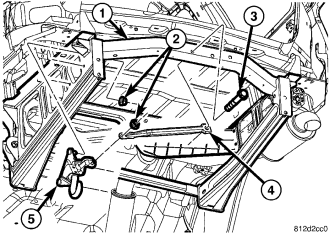

REAR TOW HOOK
1. Remove the rear fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FASCIA-REAR - REMOVAL)
2. Loosen the bolt (3).
3. Remove the brace nut and separate the brace (4).
4. Remove the mounting nuts (2) and remove the hook (5).

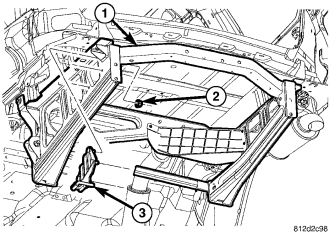

REAR TOW EYE
1. Remove the mounting nuts (2) and remove the eye (3).
INSTALLATION
REAR TOW HOOK
1. Install the tow hook (5) and install the nuts (2).
2. Tighten the nuts (2) to 88 N·m (65 ft. lbs.).
3. Tighten the brace bolt (3) to 88 N·m (65 ft. lbs.).
4. Install the rear fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/FASCIA-REAR - INSTALLATION)
REAR TOW EYE
1. Install the tow eye (3) and install the mounting nuts (2).
2. Tighten the nuts to 88 N·m (65 ft. lbs.).
