C123A-ESP SYSTEM SENSORS CALIBRATION

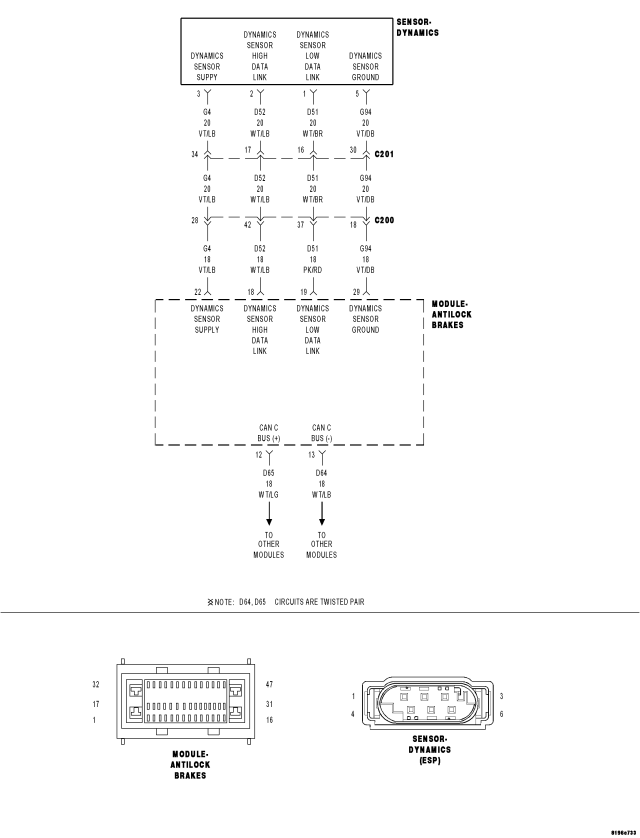

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Once per ignition cycle.
- Set Condition:
If the calculated checksum does not match the stored checksum.
| Possible Causes |
| ANTI-LOCK BRAKES MODULE |
Diagnostic Test
1. INITIALIZE ANTI-LOCK BRAKES MODULEInitialize ECU refer to ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
Does this DTC reset?
Yes
- Replace the Anti-Lock Brake Module in accordance with the Service Information.
- Perform ABS VERIFICATION TEST. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
- Test complete.
