INSTALLATION
FRONT

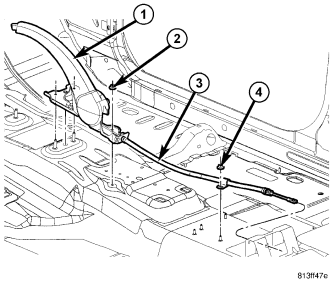

1. Install the front cable (3) at the hand lever mounting bracket (1).
2. Install the front cable (3) at the hand lever (1).
3. Install the front cable at the rear floor bracket.
4. Install the 2 front cable routing clamps and the 3 nuts (2&4).

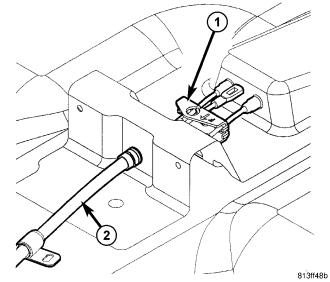

5. Install the front cable (2) at the equalizer (1).
6. Unlock the front park brake cable (1).
7. Install the rear carpet back in place.

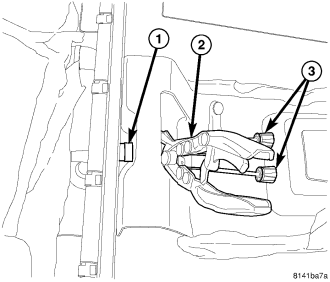

8. Install the module bracket (2) mounting nuts.

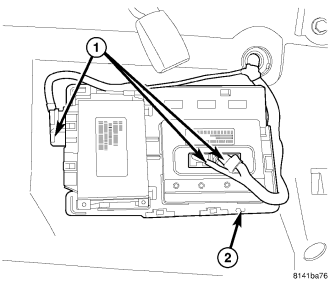

9. Reconnect the module electrical connectors (1).
10. Install the rear sill plates.
11. Install the drivers seat (Refer to 23 - BODY/SEATS/SEAT - INSTALLATION).
12. Install the left B-pillar trim panel (Refer to 23 - BODY/INTERIOR/B-PILLAR UPPER TRIM - INSTALLATION).

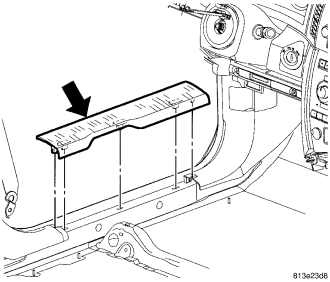

13. Install the left sill plate.

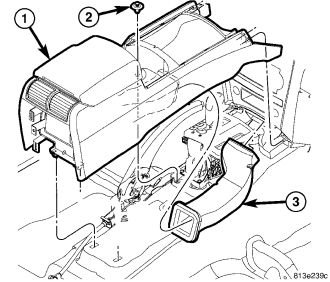

14. Install the center console (1) (Refer to 23 - BODY/INTERIOR/FLOOR CONSOLE - INSTALLATION).

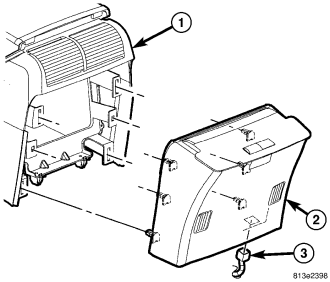

15. Install the console rear cover (2) or the DVD player (if equipped).
16. Install the rear seat bottom (Refer to 23 - BODY/SEATS/SEAT CUSHION - INSTALLATION).
17. Reconnect the negative battery cable.
REAR
1. Install the cable (2) to the vehicle.
2. Install the 2 push pins for the park brake cable to the stabilizer bar bracket.
3. Install the stabilizer bar bushing clamp bolts.

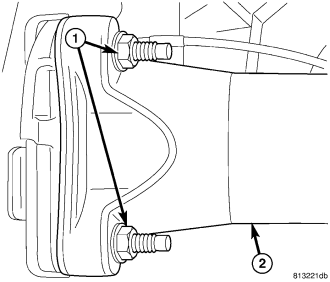

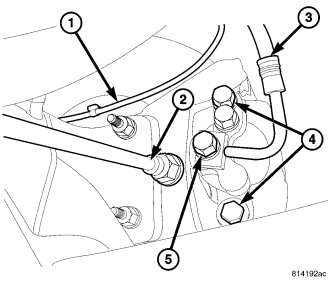

4. Install the park brake cable (2) into the support plate.
5. Reconnect the park brake cable at the brake actuator lever (2).

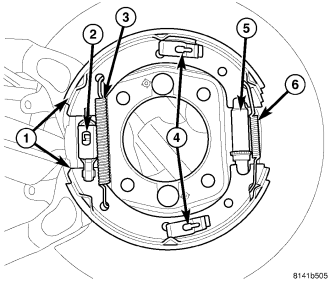

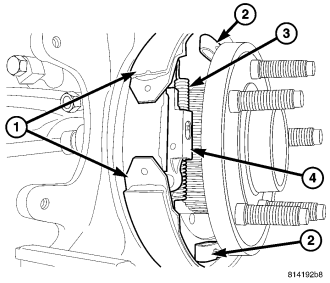

6. Reconnect the rear park brake shoes (1) (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - INSTALLATION).

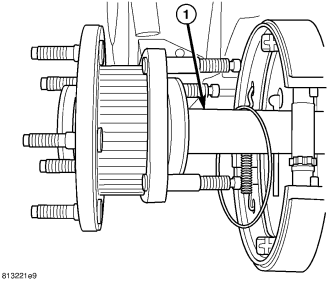

7. Install the axle shaft (1).
8. Install the axle flange nuts (1). (Refer to 3 - DIFFERENTIAL & DRIVELINE/REAR AXLE - C213R/AXLE SHAFTS - INSTALLATION).
9. Adjust rear park brake shoes (Refer to 5 - BRAKES/PARKING BRAKE/SHOES - ADJUSTMENTS).
10. Install the disc brake rotor.

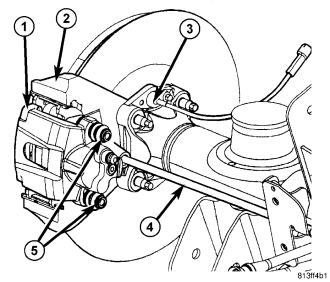

11. Install the rear caliper (1) (Refer to 5 - BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - INSTALLATION).

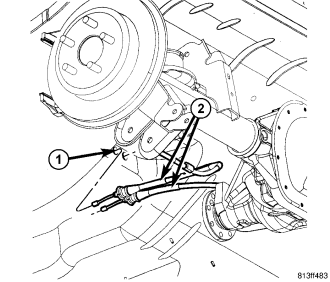

12. Install the park brake cables (2) thru the floor (1).
13. Install the tire and wheel assembly.
14. Lower the vehicle.
15. Reconnect the brake cables to the equalizer (1).
16. Unlock the park brake cable (1).
17. Fold down the rear carpet.
18. Install the rear sill plates.
19. Install the (FDCM) module bracket (2) mounting nuts.
20. Reconnect the (FDCM) module electrical connectors (1).
21. Install the rear seat bottom (Refer to 23 - BODY/SEATS/SEAT CUSHION - INSTALLATION).
22. Verify parking brake operation.
