FLEX PLATE
REMOVAL
1. Remove the transmission. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - REMOVAL).

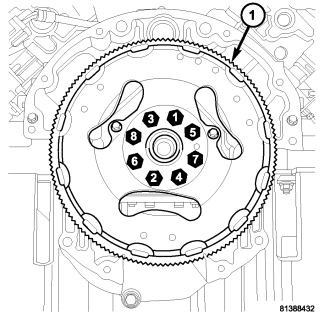

2. Remove the bolts and flexplate (1).
INSTALLATION
1. Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
2. For automatic transmissions: Tighten the flexplate retaining bolts to 95 N·m (70 ft. lbs.).
3. Install the transmission. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - NAG1 - INSTALLATION).
