P0196-ENGINE OIL TEMPERATURE SENSOR CIRCUIT PERFORMANCE

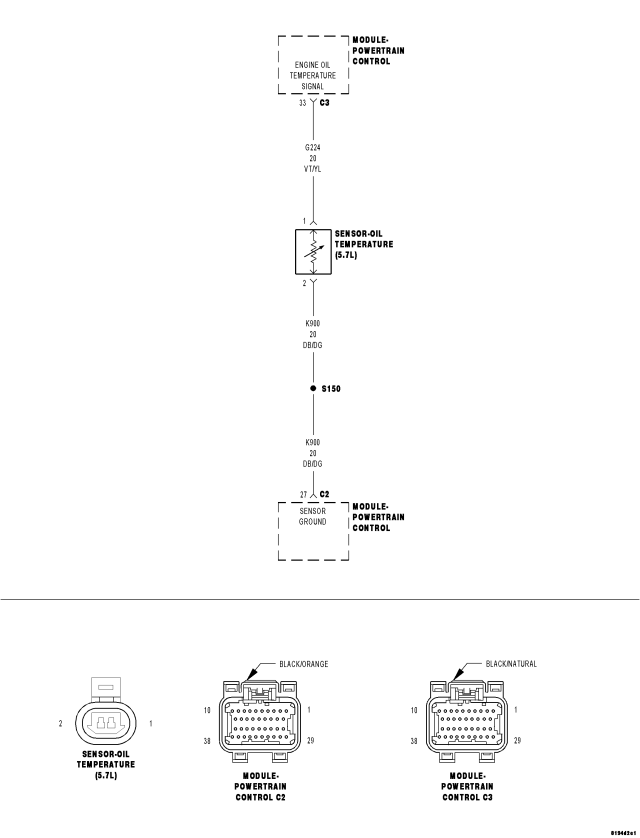

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Engine off time is greater than 480 minutes. Ambient temperature is greater than 4°C (38° F).
- Set Condition:
The PCM detects the Engine Oil Temp value is incorrect by comparing it with the other engine inputs. One Trip fault. Three good trips to turn off the MIL.
| Possible Causes |
| (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE |
| (G224) ENGINE OIL TEMP SIGNAL CIRCUIT OPEN |
| (K900) SENSOR GROUND CIRCUIT OPEN |
| (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO GROUND |
| (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO THE (K900) SENSOR GROUND |
| ENGINE OIL TEMPERATURE SENSOR |
| PCM |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
Diagnostic Test
1. ACTIVE DTCIgnition on, engine not running.
With a scan tool, select View DTCs.
Is the DTC Active at this time?
Yes
- Go To 2
No
- Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2. ENGINE OIL TEMP SIGNAL CIRCUIT
Turn the ignition off.
Disconnect the Engine Oil Temp Sensor harness connector.
Ignition on, engine not running.
Measure the voltage on the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.
Is the voltage between 4.8 to 5.2 volts?
Yes
- Go To 3
No
- Go To 4
3. ENGINE OIL TEMPERATURE SENSOR
Connect a jumper wire between the (G224) Engine Oil Temp Signal circuit and the (K900) Sensor Ground circuit in the Engine Oil Temp Sensor harness connector.
Is the voltage below 1.0 volt with the jumper wire installed?
Yes
- Replace the Engine Oil Temperature Sensor.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Go To 8
4. (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO BATTERY VOLTAGE
Turn the ignition off.
Disconnect the PCM harness connectors.
NOTE: Visually inspect both the component and the PCM connectors. Look for damaged, partially broken wires, and backed out or corroded terminals.
Ignition on, engine not running.
Measure the voltage on the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.
Is voltage present?
Yes
- Repair the short to battery voltage in the (G224) Engine Oil Temp Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Go To 5
5. (G224) ENGINE OIL TEMP SIGNAL CIRCUIT OPEN
Turn the ignition off.
CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

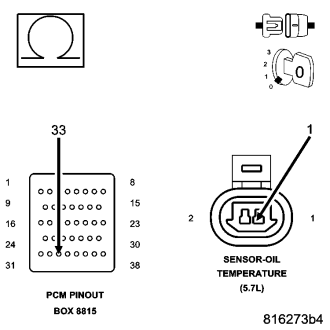

Measure the resistance of the (G224) Engine Oil Temp Signal circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes
- Go To 6
No
- Repair the open in the (G224) Engine Oil Temp Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
6. (G224) ENGINE OIL TEMP SIGNAL CIRCUIT SHORTED TO GROUND
Measure the resistance between ground and the (G224) Engine Oil Temp Signal circuit in the Engine Oil Temp Sensor harness connector.
Is the resistance below 100 ohms?
Yes
- Repair the short to ground in the (G224) Engine Oil Temp Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Go To 7
7. (G224) ENGINE OIL TEMP SIGNAL SHORTED TO THE (K900) SENSOR GROUND
Measure the resistance between the (G224) Engine Oil Temp Signal circuit and the (K900) Sensor ground circuit in the Engine Oil Temp Sensor harness connector.
Is the resistance below 5.0 ohms?
Yes
- Repair the short between the (K900) Sensor ground and the (G224) Engine Oil Temp Signal circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Go To 9
8. (K900) SENSOR GROUND CIRCUIT OPEN
Disconnect the PCM harness connectors.

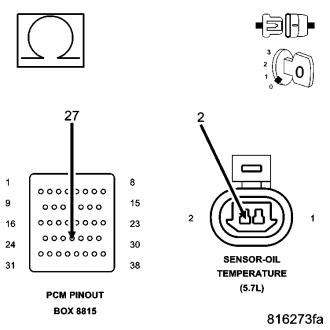

Measure the resistance of the (K900) Sensor ground circuit from the Engine Oil Temp Sensor harness connector to the appropriate terminal of special tool #8815.
Is the resistance below 5.0 ohms?
Yes
- Go To 9
No
- Repair the open in the (K900) Sensor ground circuit.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
9. PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.
Were there any problems found?
Yes
- Repair as necessary.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Replace and program the Powertrain Control Module per Service Information.
- Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
