2007 Commander XK Factory Service Manual 9 - ENGINE

P0551-POWER STEERING PRESSURE SWITCH PERFORMANCE

For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The power steering switch is used to enable quick spark and fuel corrections for high power steering loads to maintain target idle speed. The power steering switch rationality monitors the switch input during high vehicle speed conditions when the steering wheel cannot be turned far enough to reach the high-pressure switch point. If the power steering switch input remains at a high-pressure condition at high vehicle speeds, a failure timer will increment.


Possible Causes

(K66) P/S SWITCH SIGNAL CIRCUIT OPEN

(K66) P/S SWITCH SIGNAL CIRCUIT SHORTED TO GROUND

(Z988) GROUND CIRCUIT OPEN

POWER STEERING PRESSURE SWITCH

PCM



Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).



Diagnostic Test

1. ACTIVE DTC

Start the engine.
Allow the engine to reach normal operating temperature.
With a scan tool, select View DTCs.

NOTE: It may be necessary to drive the vehicle to meet the conditions to set this DTC, try to repeat the conditions in which the fault originally set by reviewing the Freeze Frame data.



Is the DTC Active or Pending at this time?

Yes


No

2. POWER STEERING PRESSURE SWITCH



Turn the ignition off.
Disconnect the Power Steering Pressure Switch harness connector.
Ignition on, engine not running.
Connect a jumper wire to the (K66) P/S Switch Signal circuit at the harness connector.
Use the scan tool to monitor the Power Steering Pressure Switch status.
Touch the other end of the jumper wire to the (Z988) Ground circuit at the Power Steering Pressure Switch harness connector several times.

Did the Power Steering Pressure Switch status change from High to Low when connecting and disconnecting the jumper wire?

Yes


No

3. (K66) P/S SWITCH SIGNAL CIRCUIT OPEN



Turn the ignition off.
Disconnect the C3 PCM harness connector.

CAUTION: Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install Miller Special Tool #8815 to perform diagnosis.

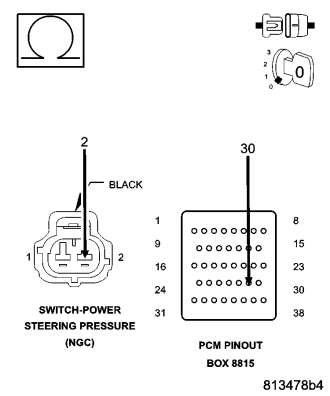

Measure resistance of (K66) P/S Switch Signal circuit from the Power Steering Pressure Switch harness connector to the appropriate terminal of special tool #8815.

Is the resistance below 5.0 ohms?

Yes


No

4. (K66) P/S SWITCH SIGNAL CIRCUIT SHORTED TO GROUND



Measure the resistance between ground and the (K66) P/S Switch Signal circuit in the Switch connector.

Is the resistance below 100 ohms?

Yes


No

5. (Z988) GROUND CIRCUIT OPEN



Measure the resistance between Ground and the (Z988) Ground circuit in the Power Steering Pressure Switch connector.

Is the resistance below 100 ohms?

Yes


No

6. PCM

NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.


Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and Ground circuits.

Were there any problems found?

Yes


No
